3-12 Sun Ultra 45 and Ultra 25 Workstations Service and Diagnostics Manual • May 2006

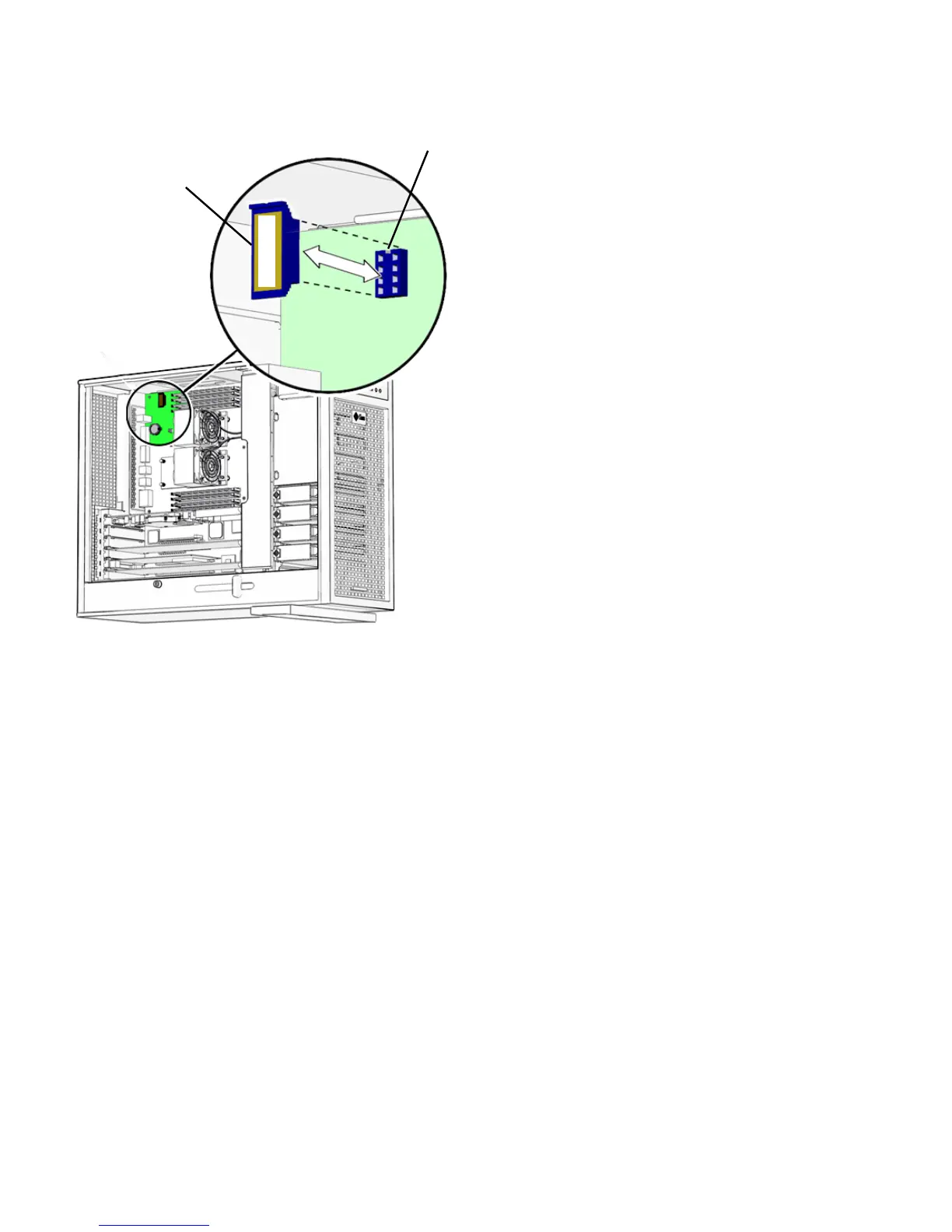

FIGURE 3-7 Removing and Installing the NVRAM
3. Set the NVRAM aside on an antistatic mat.
3.4.2 Installing the NVRAM
The NVRAM installs directly onto the motherboard. There are no additional
fasteners or cables.
1. Power off the system and attach an antistatic wrist strap. Open and position the
chassis, and remove the access panel.
Refer to “Powering Off the Workstation” on page 2-4.
2. Align the NVRAM key to the NVRAM connector key on the motherboard
(
FIGURE 3-7).
3. Press the NVRAM down into the connector.
4. Ensure that the NVRAM is tight in its connector.
MAC address
NVRAM key
12345678
