3-10 Sun Ultra 45 and Ultra 25 Workstations Service and Diagnostics Manual • May 2006
3.3.1 Removing the Battery
1. Power off the system and attach an antistatic wrist strap. Open and position the
chassis, and remove the access panel.
Refer to “Powering Off the Workstation” on page 2-4.
2. Release the battery by pressing the battery clip away from the battery until the
battery shifts out of the battery socket (
FIGURE 3-6).
3. Remove the battery.

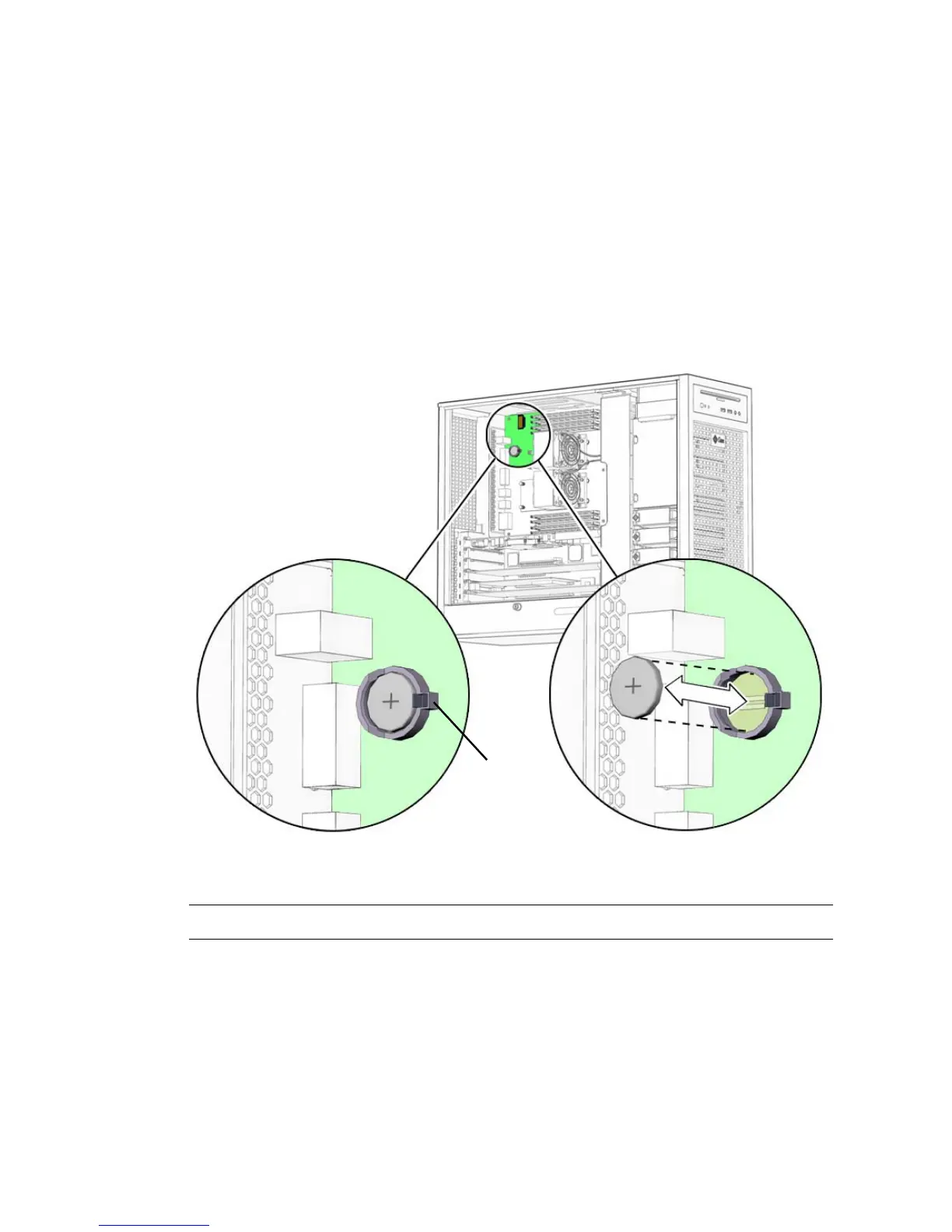

FIGURE 3-6 Removing and Installing the Battery
Note – The workstation does not function without the battery.
Battery clip
