12-4 COOLING SYSTEM

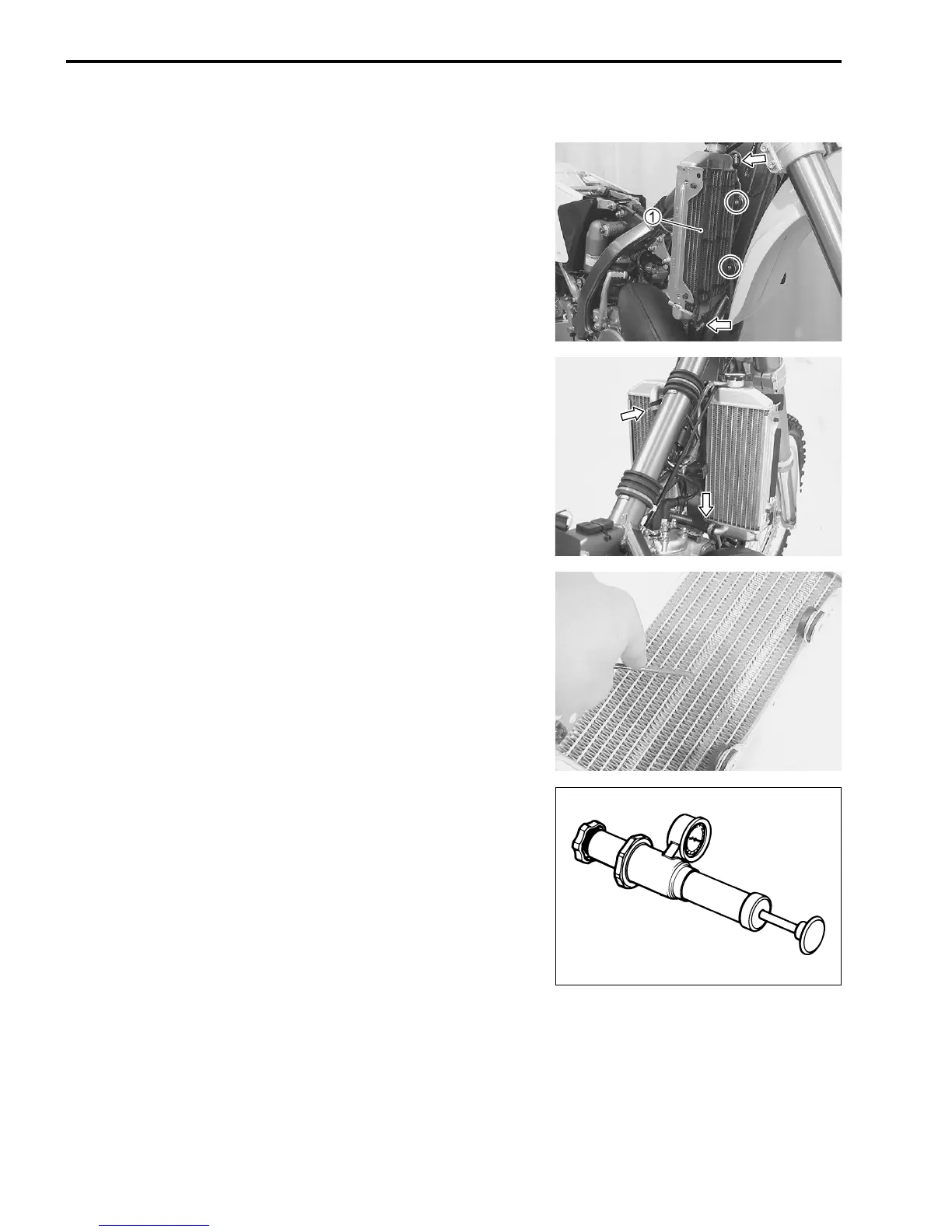

RADIATOR
REMOVAL
• Remove the seat and fuel tank. (5-3)
• Drain engine coolant. (12-3)
• Remove the radiator covers 1. (LH & RH)
• Remove the hoses.
• Remove the radiators.
INSPECTION
RADIATOR
• Visually inspect the radiator for damage.
• Fins bent down or dented can be repaired by straightening
them with the blade of a small screwdriver.
RADIATOR CAP
• Inspect the radiator cap for function with a radiator cap pres-
sure gauge.
Radiator cap valve release pressure:
95 – 125 kPa (0.95 – 1.25 kgf/cm
2
, 13.5 – 17.8 psi)
NOTE:
Apply water to radiator cap seal before fitting the radiator cap to
the pressure gauge.
INSTALLATION
Reverse the sequence of removal.
• Rout the radiator hoses correctly. (18-14)
