17-16 REAR SUSPENSION

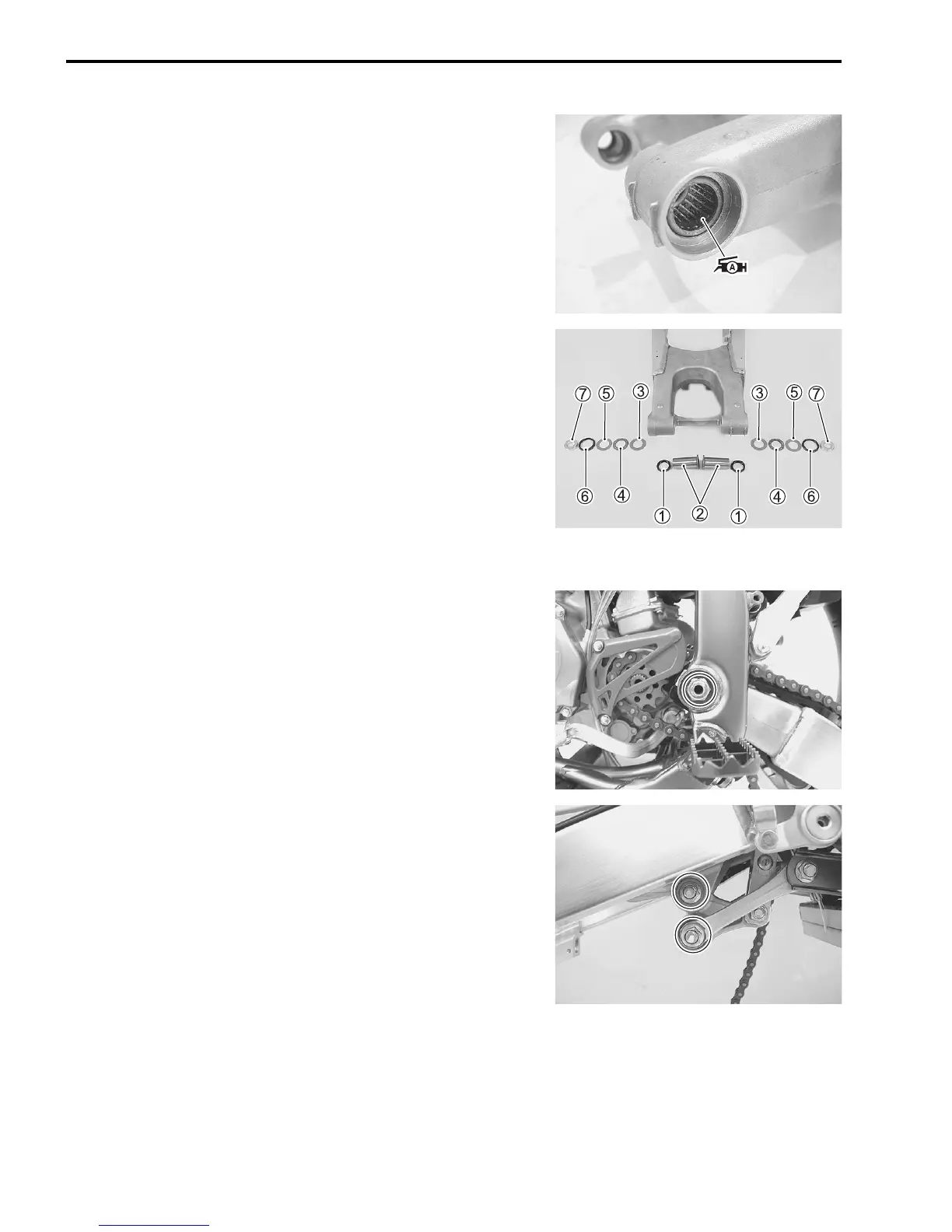

• Apply grease to the bearings.
 99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
INSTALLATION
• Reassemble the following parts into the swingarm.
1 Oil seal 5 Washer
2 Spacer 6 Dust seal
3 Washer 7 Spacer
4 Thrust bearing
• Apply grease to the dust seals, bearings, spacers and oil
seals.
 99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
• Reassemble the plates and chain buffer.
• Tighten the swingarm pivot nut to the specified torque.
 Swingarm pivot nut: 70 N·m (7.0 kgf-m, 50.5 lb-ft)
• Tighten the rear cushion lever nut and rear cushion rod nut to
the specified torque.
 Rear cushion lever nut: 80 N·m (8.0 kgf-m, 58.0 lb-ft)
Rear cushion rod nut: 80 N·m (8.0 kgf-m, 58.0 lb-ft)
• Install the rear brake caliper.
• Reassemble the chain guide.
• Install the rear wheel. (14-8)
• Adjust the drive chain slack. (2-16)
