Suzuki RM125 - Brake Lever; Removal; Installation

FRONT AND REAR BRAKES 15-17

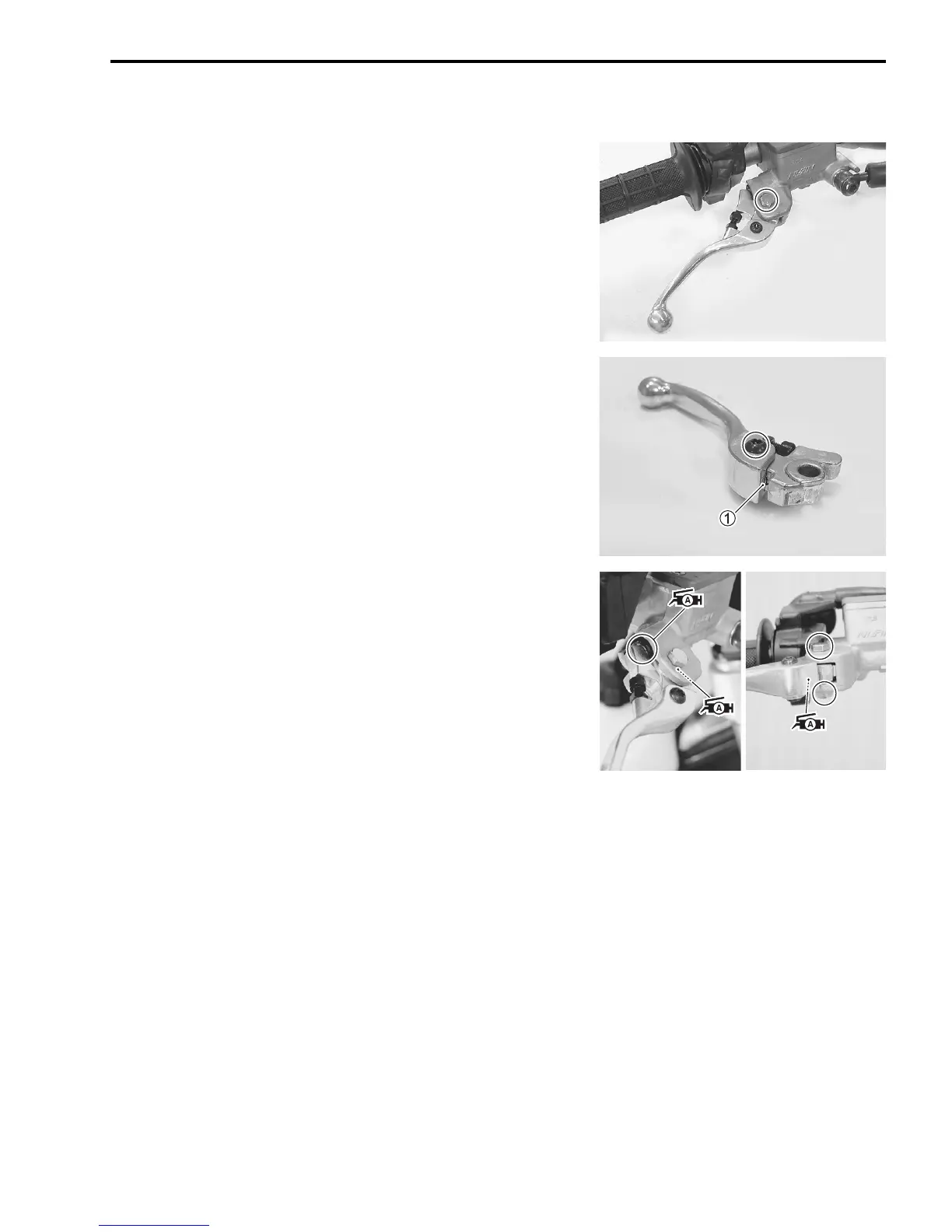

BRAKE LEVER
REMOVAL
• Remove the brake lever.
• Remove the brake lever adjuster return spring 1.
 09930-11960: Torx wrench, T20
INSTALLATION
• Apply grease to the brake lever adjuster return spring, pivot
bolt and contact point between piston and brake lever.
 99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
• Tighten the pivot bolt and pivot nut to the specified torque.
 Pivot bolt: 6 N·m (0.6 kgf-m, 4.4 lb-ft)
Pivot nut: 6 N·m (0.6 kgf-m, 4.4 lb-ft)
