13-4 ELECTRICAL SYSTEM

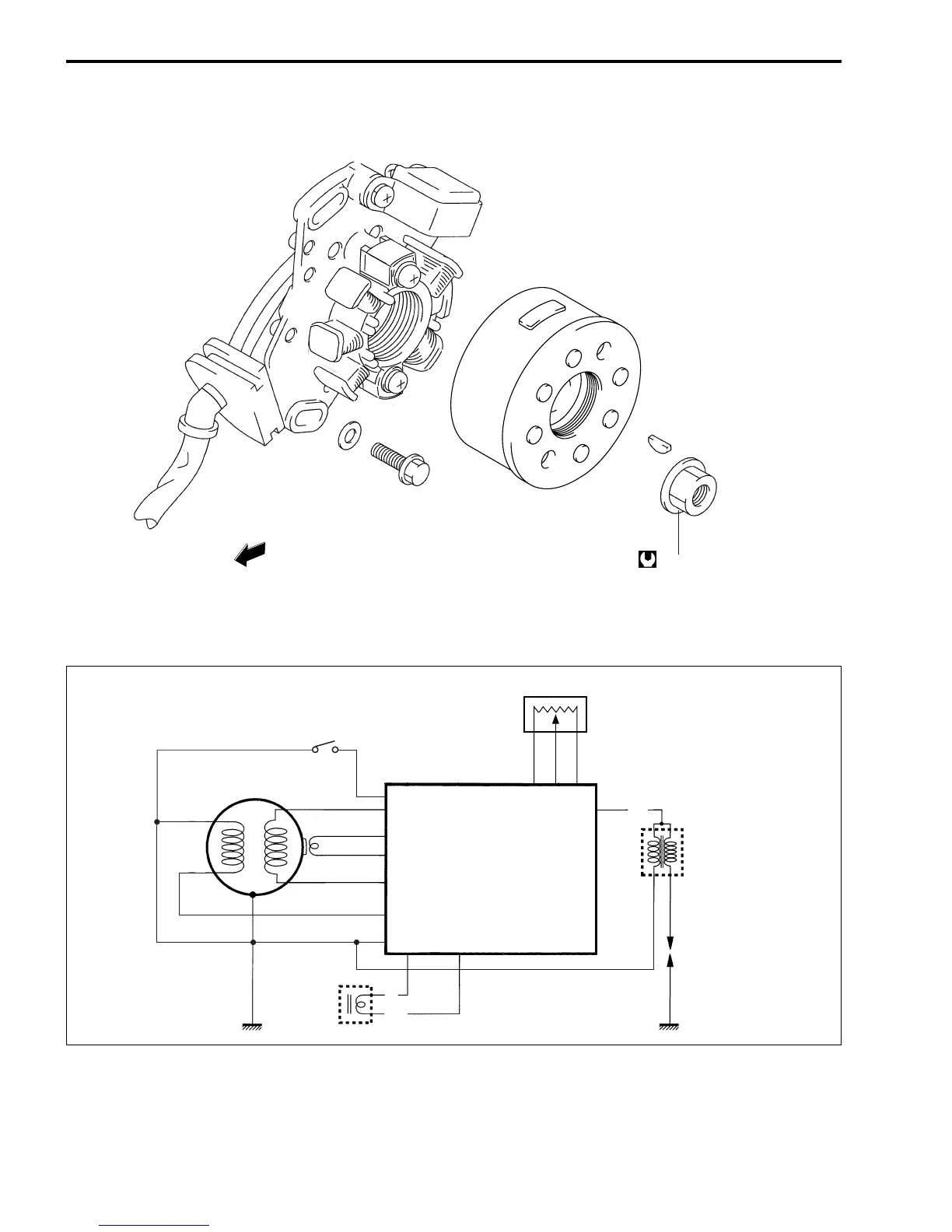

CONSTRUCTION
ELECTRICAL CIRCUIT
Wire color:
B: Black B/Bl: Black with Blue B/R: Black with Red tracer
G: Green B/Br: Black with Brown B/W: Black with White tracer
R: Red B/G: Black with Green tracer B/Y: Black with Yellow tracer
Y: Yellow B/O: Black with Orange tracer R/W: Red with White tracer
W/Bl: White with Blue tracer
35 N
.
m
(3.5 kgf-m, 25.5 lb-ft)
FWD
FWD
Magneto
Engine stop switch
CDI unit
Ignition coil
Spark plug
Carburetor
solenoid
B/R
B/W
R
G
B
B/R
R/W
R
G
B
B/WB/W
B/W
B/WB/W
YYYY
B/YB/Y
B/O
Throttle position sensor
B/GB/G
B/Bl
B/Br
B/Bl
B/Br
W/BlW/Bl
B/WB/W
