13-8 ELECTRICAL SYSTEM

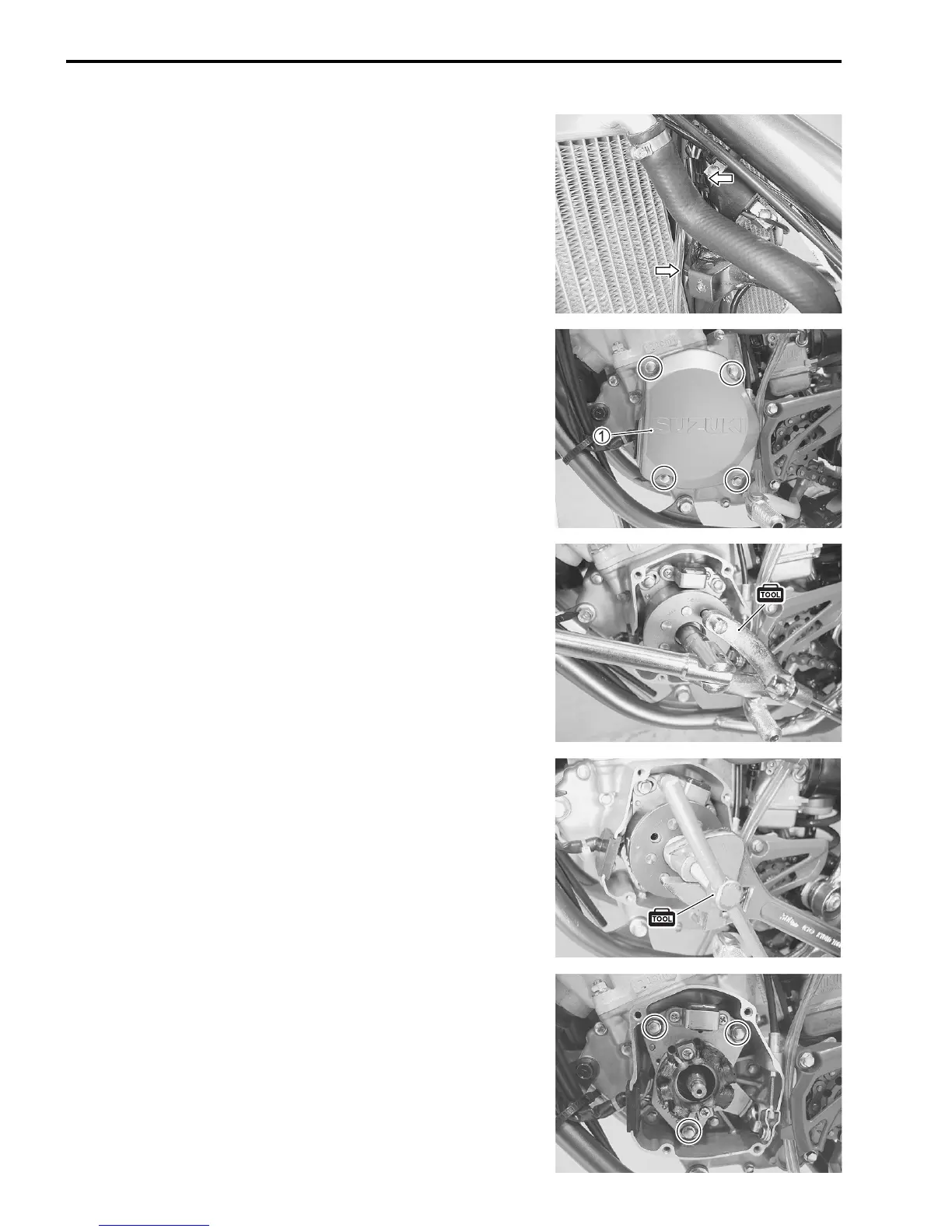

MAGNETO ROTOR AND STATOR REMOVAL
• Remove the seat and fuel tank. (5-3)
• Disconnect the magneto lead wire coupler and clamp.
• Remove the bolts and magneto cover 1.
• Remove the nut with a special tool.
09930-40113: Rotor holder
• Remove the magneto rotor with the special tool.
09930-30113: Flywheel rotor remover
• Remove the bolts and remove the stator.
