Suzuki RM125 - Brake Pedal; Removal; Reassembly

15-18 FRONT AND REAR BRAKES
BRAKE PEDAL

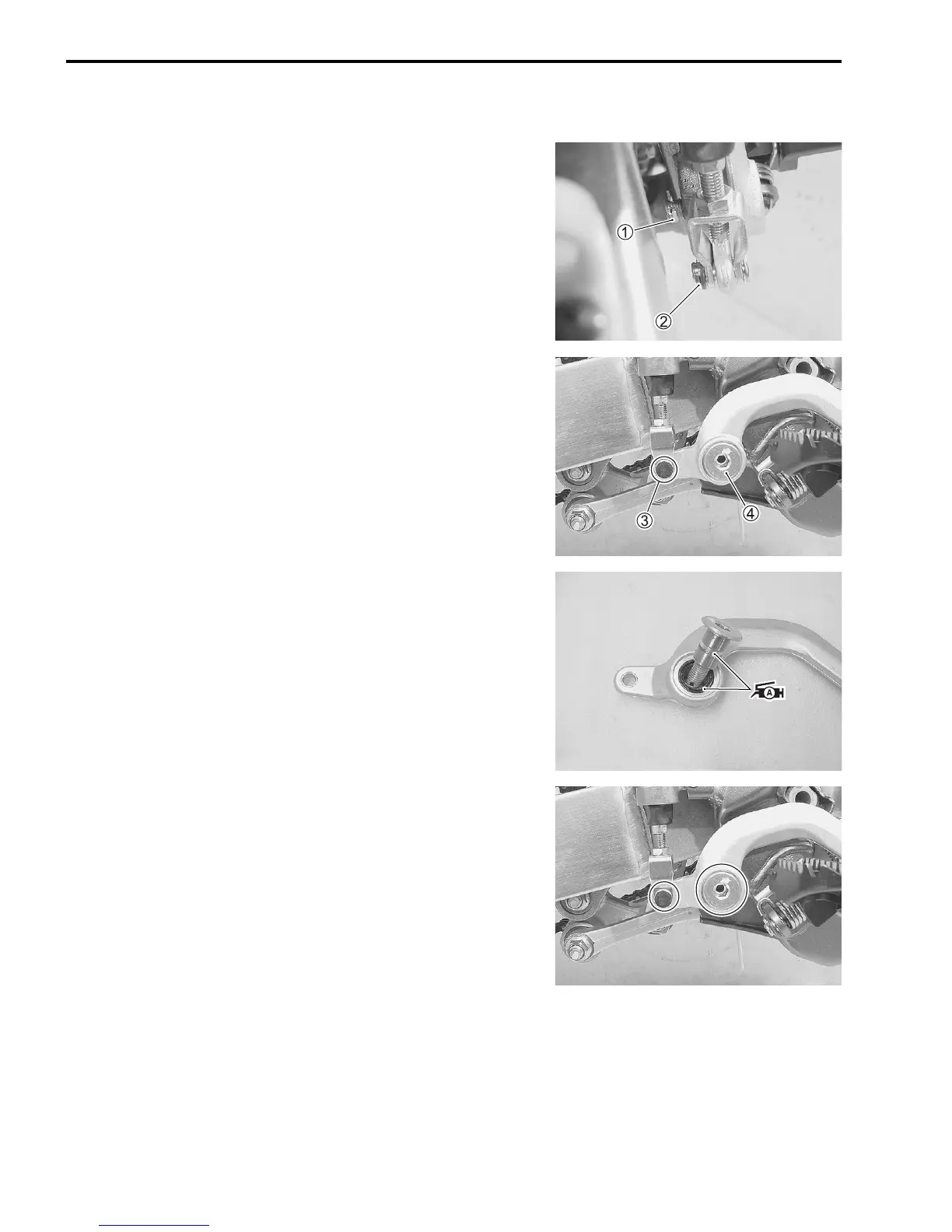

REMOVAL
• Remove the cotter pin 1.
• Remove the cotter pin 2.
• Remove the washer and master cylinder rod pin 3.
• Remove the brake pedal pivot bolt 4.
REASSEMBLY
• Apply SUZUKI SUPER GREASE to the oil seal and brake
pedal pivot bolt.
 99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
• Install the return spring properly. (18-15)
• Tighten the brake pedal pivot bolt to the specified torque.
 Brake pedal pivot bolt: 29 N·m (2.9 kgf-m, 21.0 lb-ft)
• Install new cotter pins.
• Adjust the brake pedal height. (2-19)
