Suzuki RM125 - Brake Pad; Front Brake Lever Adjustment; Brake Pedal Height Adjustment

PERIODIC MAINTENANCE 2-19

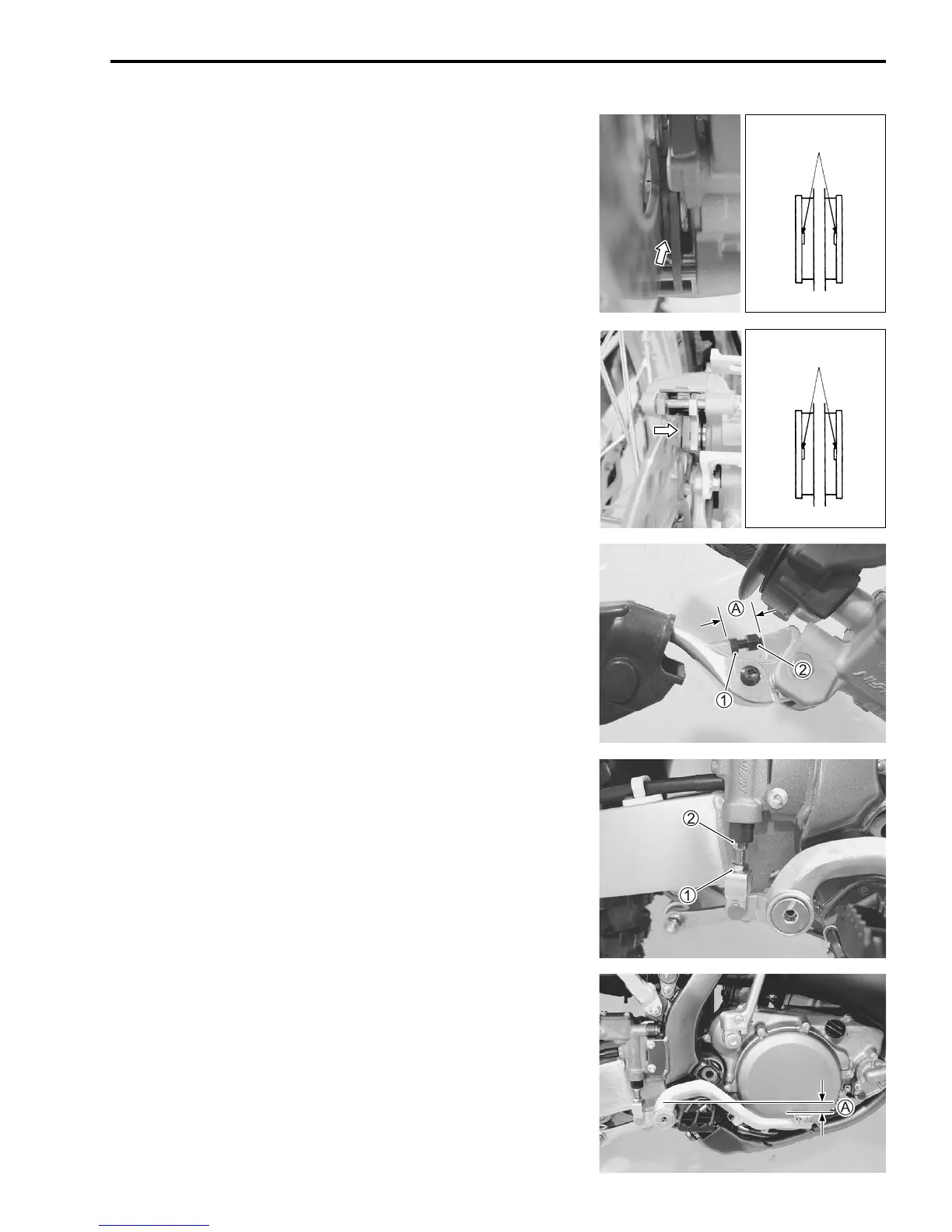

BRAKE PAD
• Inspect the brake pads for wear. If the brake pads are worn,
replace them with new ones. (15-5)
NOTE:
* Pump the brake lever/pedal several times to restore the brake
pads after replacing the brake pads.
* Replace both right and left pads together when replacing the
brake pads.
FRONT BRAKE LEVER ADJUSTMENT
Adjust the brake lever position as follows:
• Loosen lock-nut 1.
• Turn in or out adjuster 2 to obtain the proper brake lever
position.
• The standard adjuster length A is from 11 mm to 15 mm.
• Tighten the lock-nut 1.
 Adjuster length A: 11 – 15 mm (0.4 – 0.6 in)
BRAKE PEDAL HEIGHT ADJUSTMENT
Adjust the rear brake pedal height as follows:
• Loosen lock-nut 1.
• Adjust the brake pedal height A by turning the adjuster 2 to
locate the pedal 0 – 10 mm (0 – 0.3 in) below the top face of
the footrest.
• Tighten lock-nut 1.
 Brake pedal height A: 0 – 10 mm (0 – 0.3 in)
Wear limit
Wear limit
