Suzuki RM125 - Clutch Release Camshaft; Removal; Inspection; Installation

CLUTCH 7-9

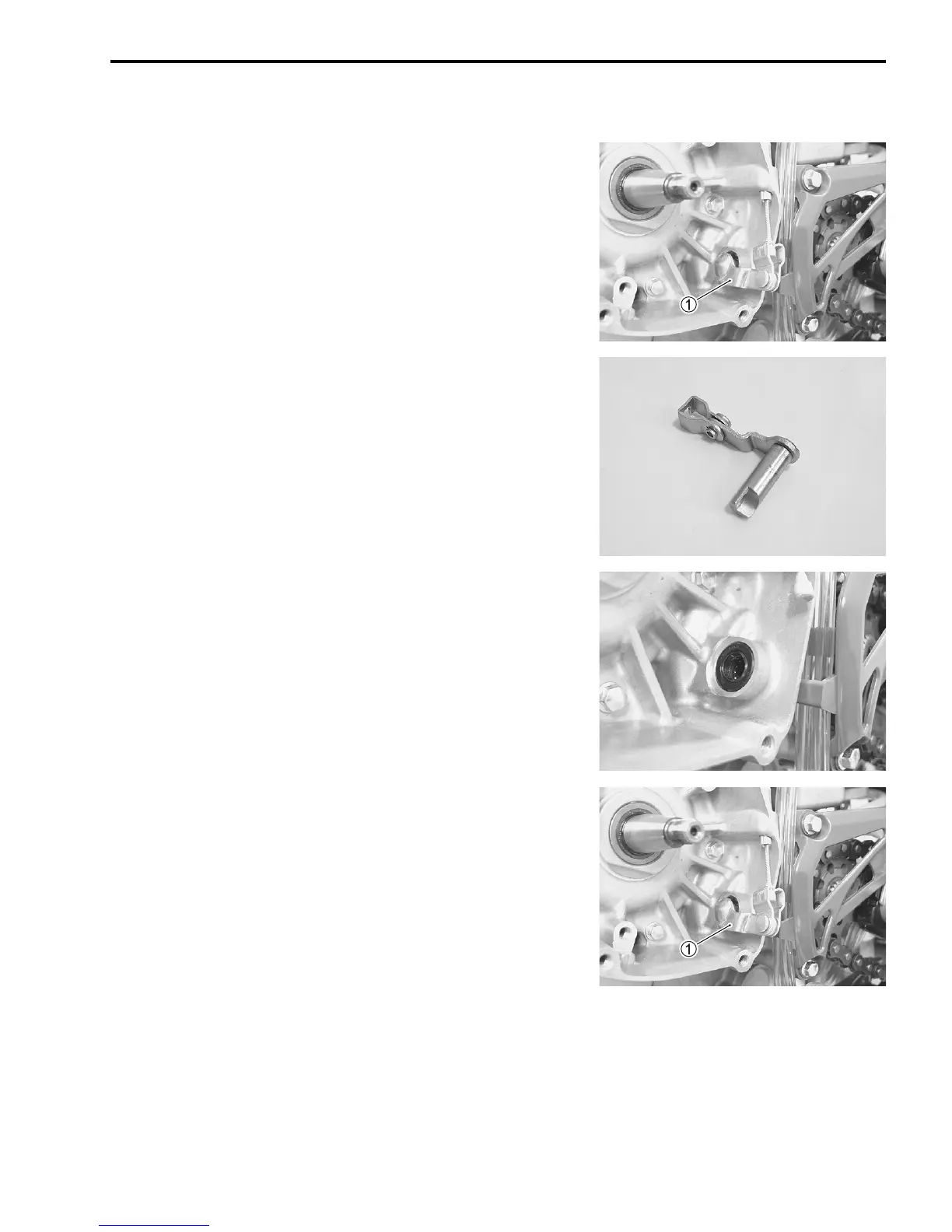

CLUTCH RELEASE CAMSHAFT
REMOVAL
• Remove the magneto rotor and stator. (13-8)
• Loosen the clutch cable adjuster and unhook the clutch cable.
(5-6)
• Remove the clutch release camshaft 1.
INSPECTION
CLUTCH RELEASE CAMSHAFT
• Inspect the clutch release camshaft for abnormal deflection
and damage.
OIL SEAL AND BEARING
• Inspect the oil seal for damage and oil leakage.
• Inspect the bearings for abnormal noise, wear and damage.
OIL SEAL REMOVAL AND INSTALLATION (10-7)
BEARING REMOVAL AND INSTALLATION (10-9)
INSTALLATION
• Install the clutch release camshaft 1 and hook the clutch
cable.
• Reassemble the magneto rotor and stator. (13-9)
• Fit a new gasket and install the magneto cover.
• Inspect the clutch cable play. (2-12)
