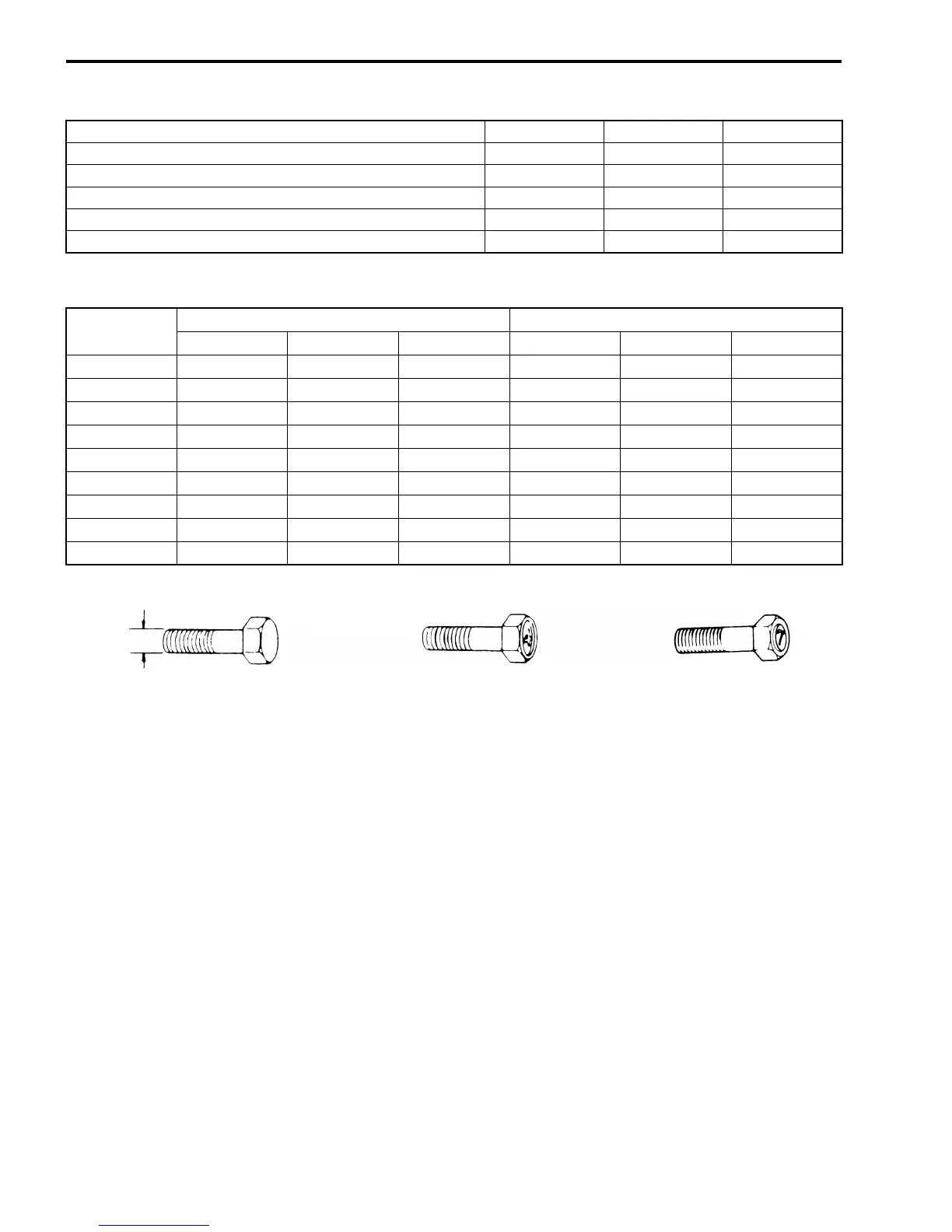

18-8 SERVICING INFORMATION
For other bolts and nuts not listed in the table, refer to this chart.
PART N·m kgf-m lb-ft
Handlebar holder set nut 15 1.5 11.0
Seat rail nut (upper) 23 2.3 16.5
Seat rail bolt (lower) 23 2.3 16.5
Brake lever pivot bolt 6 0.6 4.4
Brake lever pivot nut 6 0.6 4.4
Bolt Diameter
A (mm)
Conventional or “4” marked bolt “7” marked or crown headed bolt
N·m kgf-m lb-ft N·m kgf-m lb-ft
4 1.5 0.15 1.0 2.3 0.23 1.5
5 3 0.3 2.0 4.5 0.45 3.0
6 5.5 0.55 4.0 10 1.0 7.0
8 13 1.3 9.5 23 2.3 16.5
10 29 2.9 21.0 50 5.0 36.0
12 45 4.5 32.5 85 8.5 61.5
14 65 6.5 47.0 135 13.5 97.5
16 105 10.5 76.0 210 21.0 152.0
18 160 16.0 115.5 240 24.0 173.5
Conventional bolt
“4” marked bolt
“7” marked bolt
A
