12 Software description
CyFlow
®
Cube 8 | Operating Manual | May 2018 | Revision 032 109

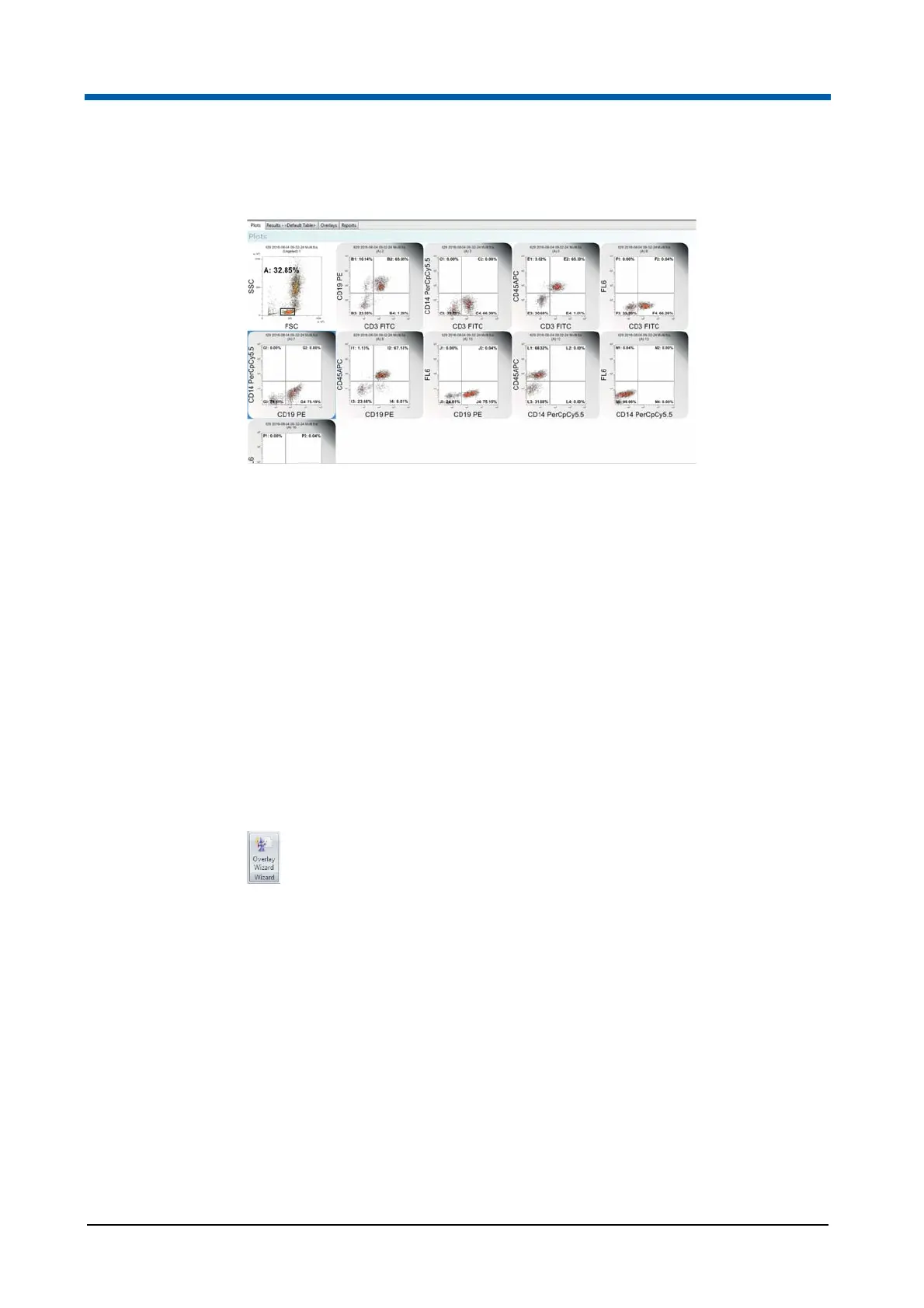

Verification Workspace (optional):
When acquisition is completed on the last compensation Workspace or, if
existing, on the verification sample, the calculated compensation matrix is
displayed.
12.4.11 Overlay tab
The Overlay tab provides controls for creating single and dual parameter plot
overlays. Overlay plots can be used to compare plots. The overlay plots are
displayed in the Overlays tab of the Workspace (see chapter 12.8.3 Overlays
tab of the Workspace on page 174).
Wizard group
The Overlay Wizard is only available in Playlist mode. The Overlay Wizard
simplifies the process of generating overlay plots from a Playlist of samples.
Before starting the Overlay Wizard, make sure Workspaces in the Playlist
are the same for all files.
Click the Overlay Wizard button to launch the Wizard.
The Overlay Wizard is made up of four types of pages:
Welcome Page,
Plot Selection Page,
Overlay Layout Page,
Overlay Labels Page.
