EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.1
7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY
7.1.1. 500 AND 500SP VERSION

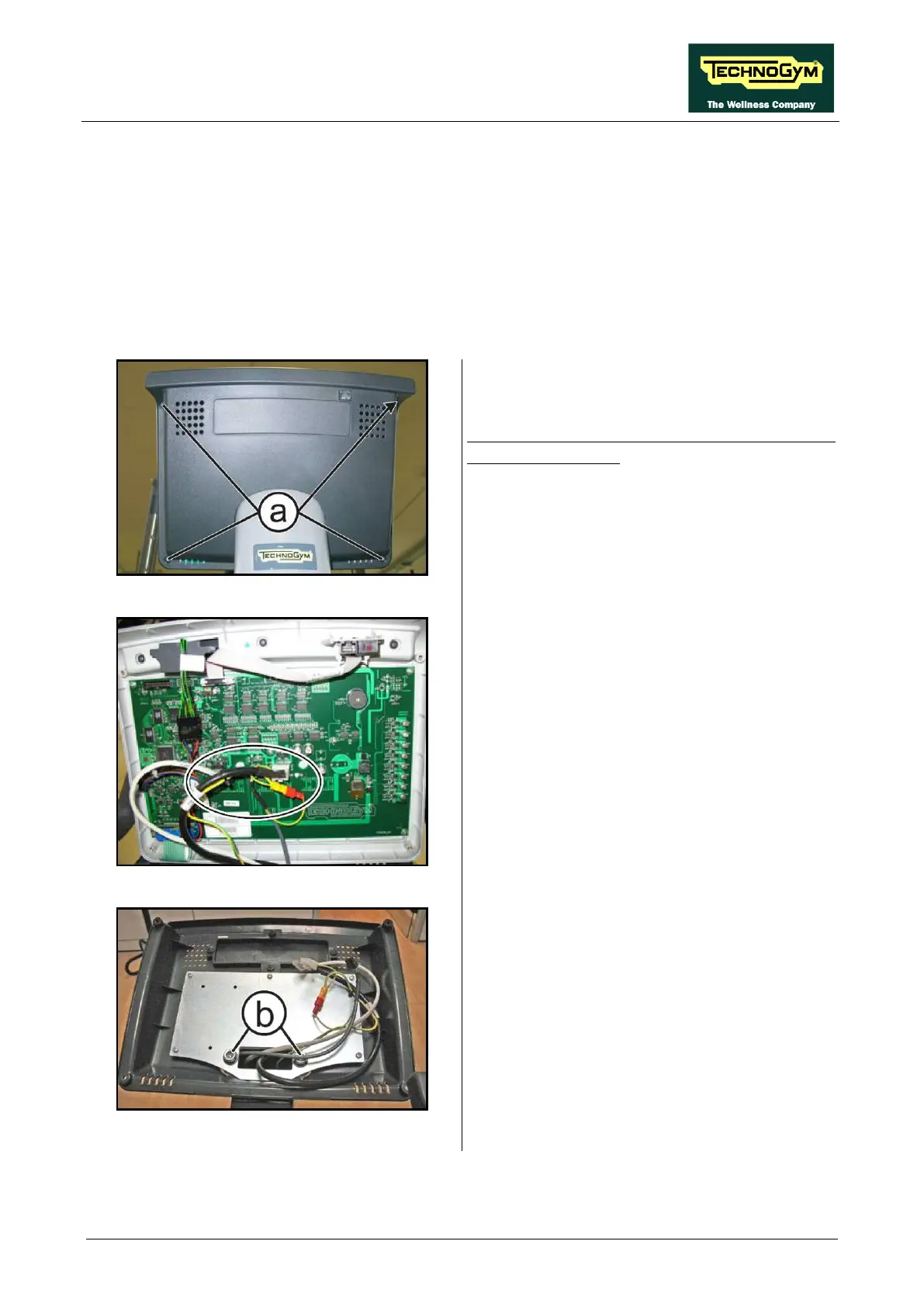

Figure 7.1-1
Turn off the machine and unplug the mains lead
from the wall outlet:
1. Back off the 4 screws (a)
using a medium
Phillips screwdriver.
Figure 7.1-2
1.
Unplug the connector highlighted in the
figure at the side.
2. Remove the Display.
Figure 7.1-3
3. Back off the 2 screws (b), using an 8mm
hexagonal wrench, for remove the rear
support of the Display.
To reassemble the LED Display,
carry out the above steps in reverse order.
