7.10. DISASSEMBLING THE BRAKE BOARD BOX

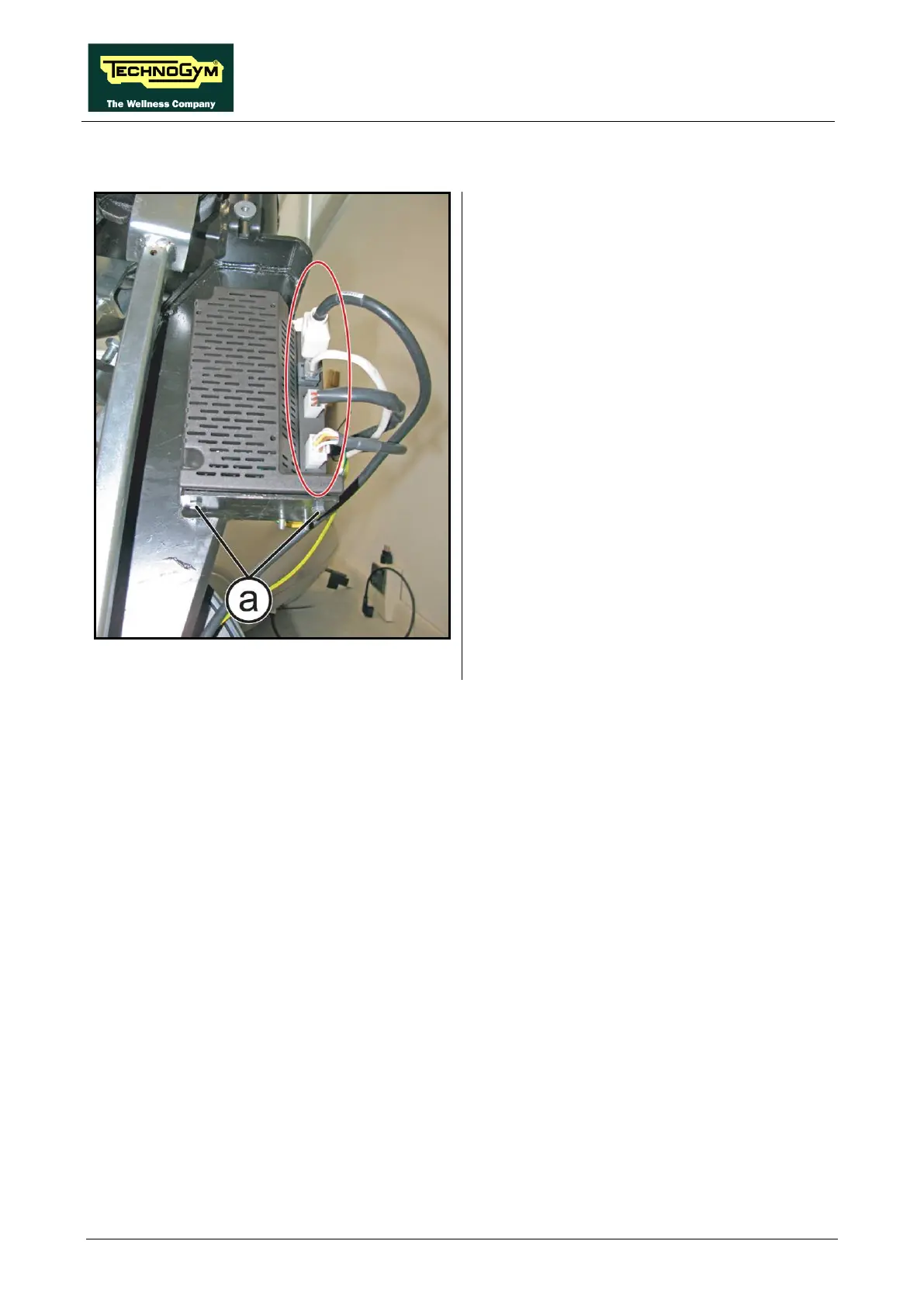

Figure 7.10-1
Carry out the procedure described in paragraph:
7.8.2. “Disassembling the lateral guards”.
1. Back off the 2 screws (a)
, using a 4mm
hexagonal wrench.
2.
Disconnect the 4 connectors highlighted in
the figure at the side.
3. Remove the Brake Board box.
To reassemble the brake board box,
follows the above steps in the reverse order.
