EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 4.1
4. ACCESSORIES
4.1. CARDIO THEATER CONNECTION
Only for LED version

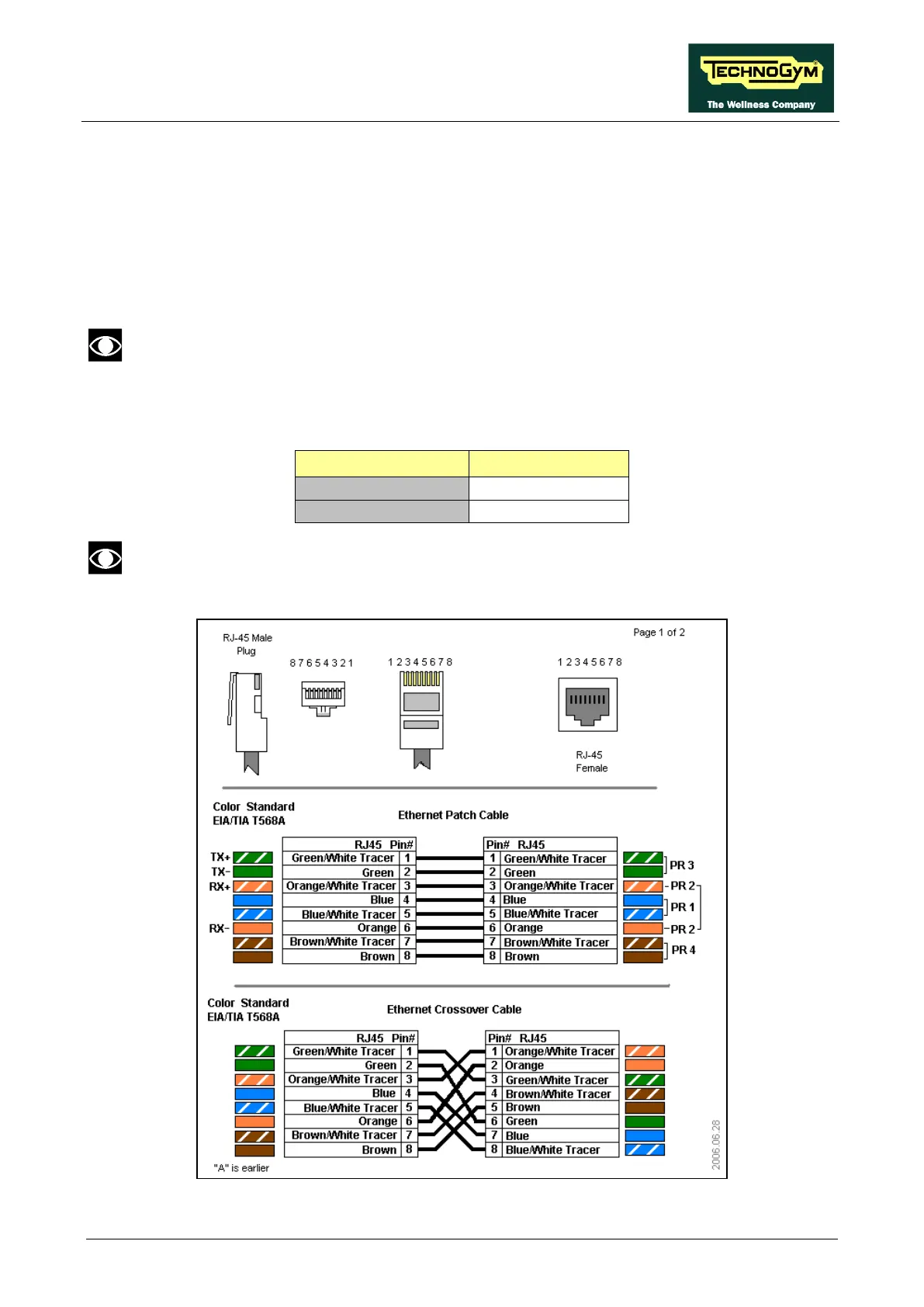

The machine can be connected to the Cardio Theater by means of the RJ45 connector on the C-Safe
board. The Cardio Theater unit must be provided with a power cable having the following pin-out:
WARNING: for the numbering of the pins, on RJ45 connector, please refer to the
diagram below:
