7.8. DISASSEMBLING THE GUARDS
7.8.1. DISASSEMBLING THE UPPER GUARD

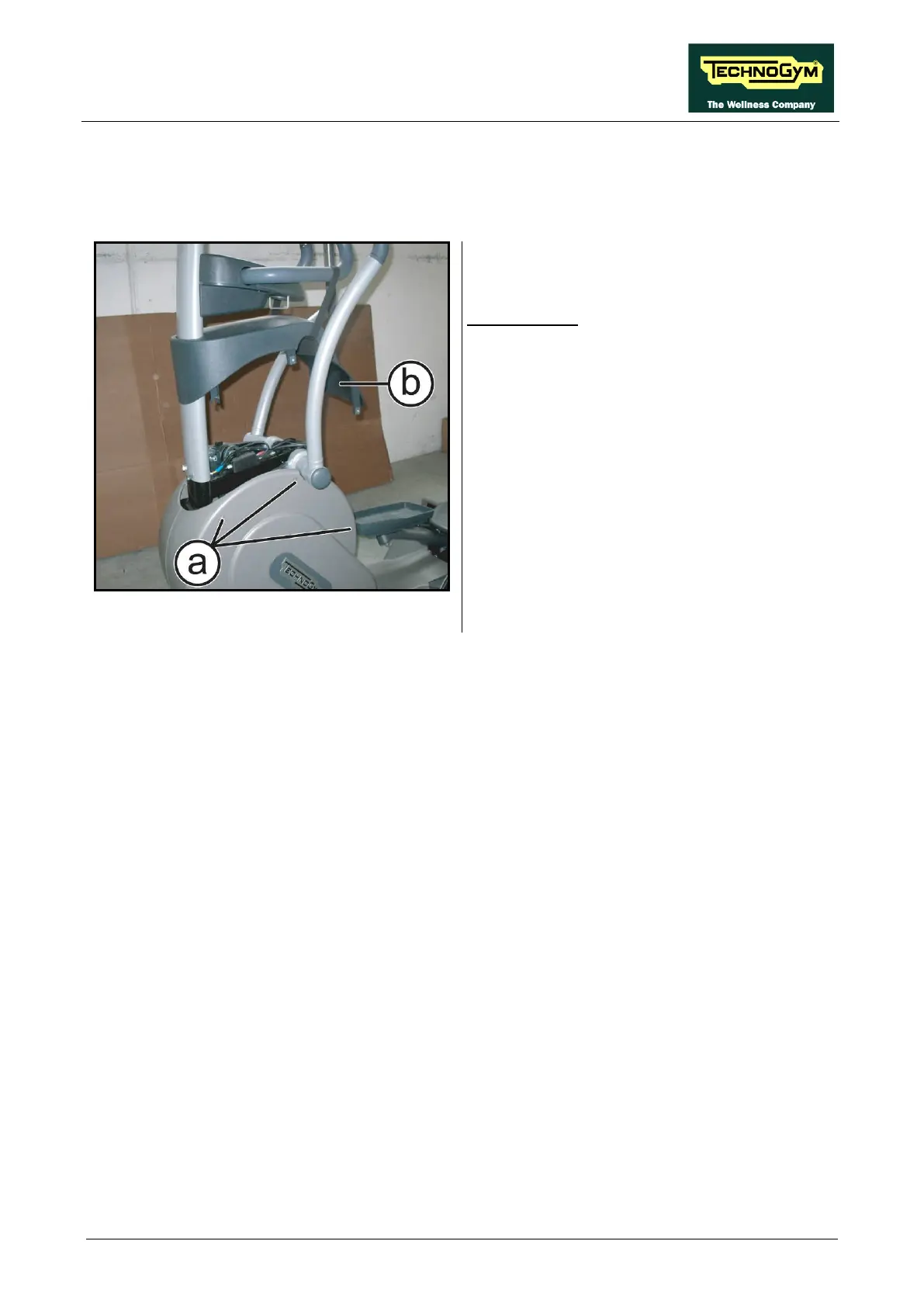

Figure 7.8-1
On both sides:
1. Back off the 3 screws (a)
using a 4mm
hexagonal wrench.
2. Lift the upper guard (b)
and fix it using a
strap as shown in the figure at the side.
To reassemble the upper guard, follows the
above steps in the reverse order.
