7.19. DISASSEMBLING THE FOOTBOARD

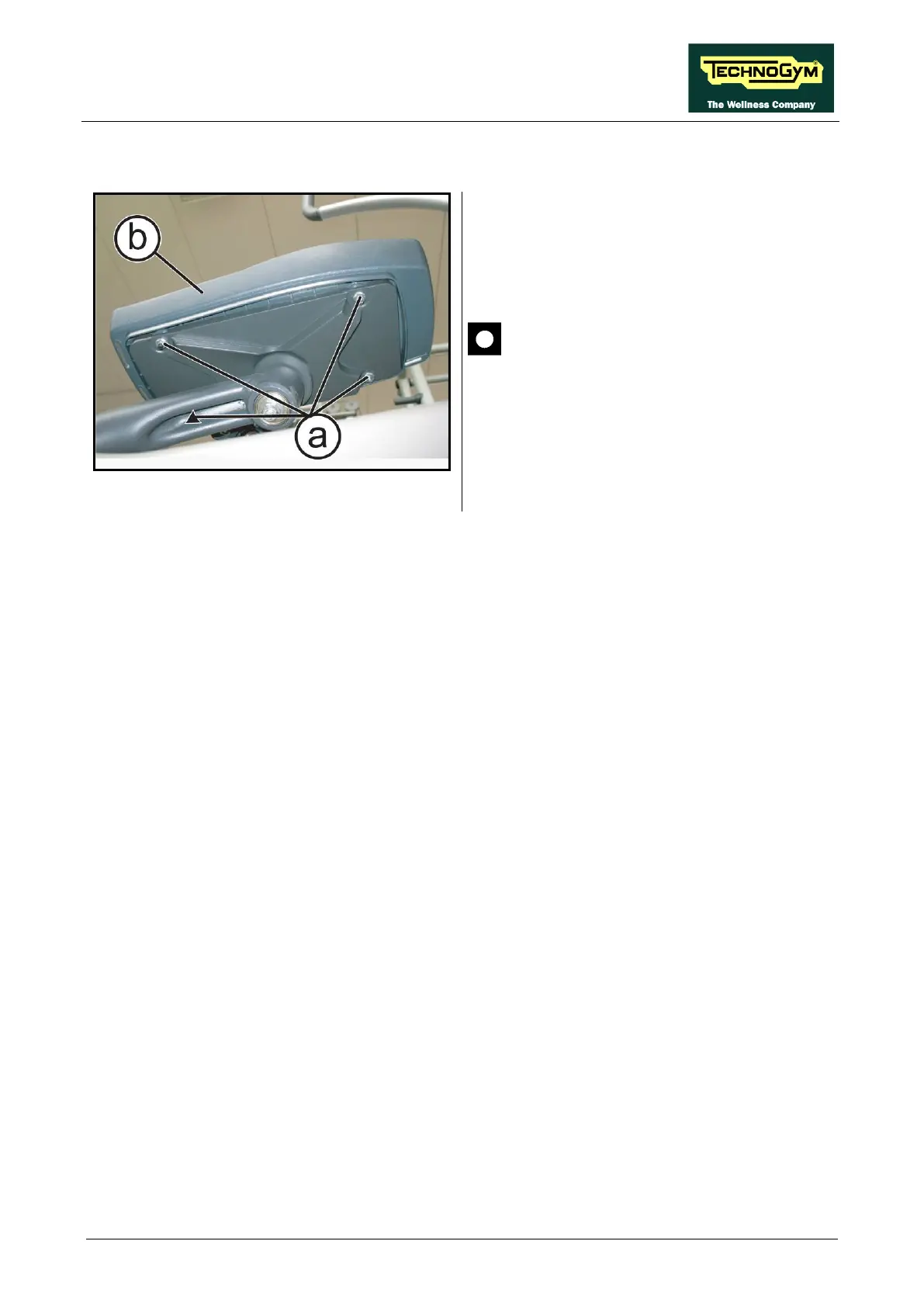

Figure 7.19-1
1. Back off the 4 nuts (a)
wrench.
2. Remove the footboard (b).
CAUTION: During the reassembly
lock down the screws (a) using a
torque wrench set for 9Nm.
To reassemble the footboard, carry out the above
steps in reverse order.
