7.20. DISASSEMBLING THE REAR FOOTBOARD AND LEVERS

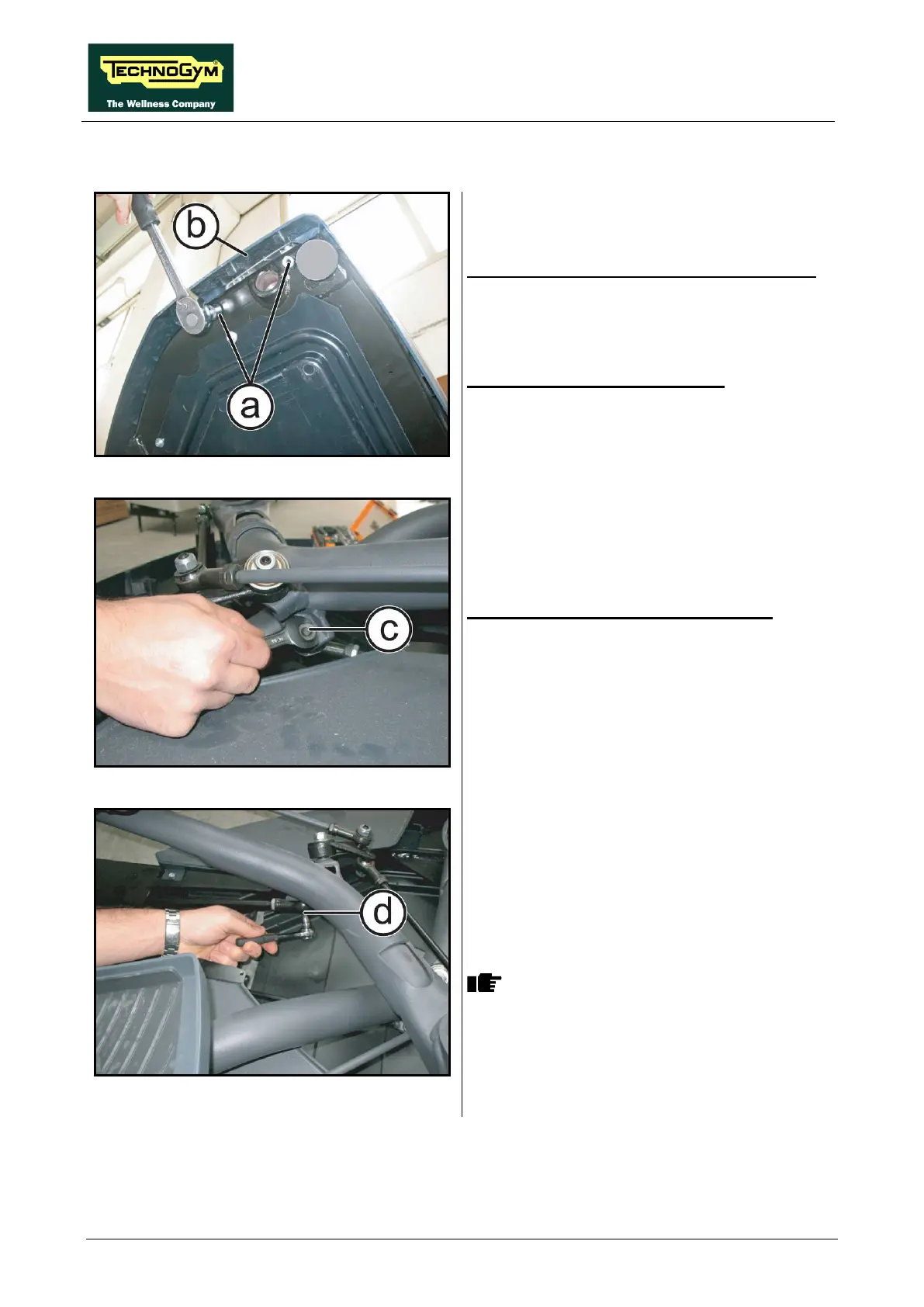

Figure 7.20-1
Incline the equipment on a side with caution:
1. Back off the 2 nuts (a)
using a 17mm wrench
on both sides.
Place the equipment on the floor:
2. Remove the footboard (b).
Figure 7.20-2
On the lever that you want disassembly:
3. Back off the nut (c) of the ball-
joint, using a
17mm wrench.
Figure 7.20-3
4. On the same ball-joint, back off the screw (d)
using a 6mm hexagonal wrench.
5. Disconnect the tie-rod from the lever.
Pay attention to reinsert any plastic
spacers of the ball joints,
in the same
position.
Continued on following page ...
