Technogym EXCITE+ - Disassembling the Cardio (Hr) Receiver

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.22
7.4. DISASSEMBLING THE CARDIO (HR) RECEIVER

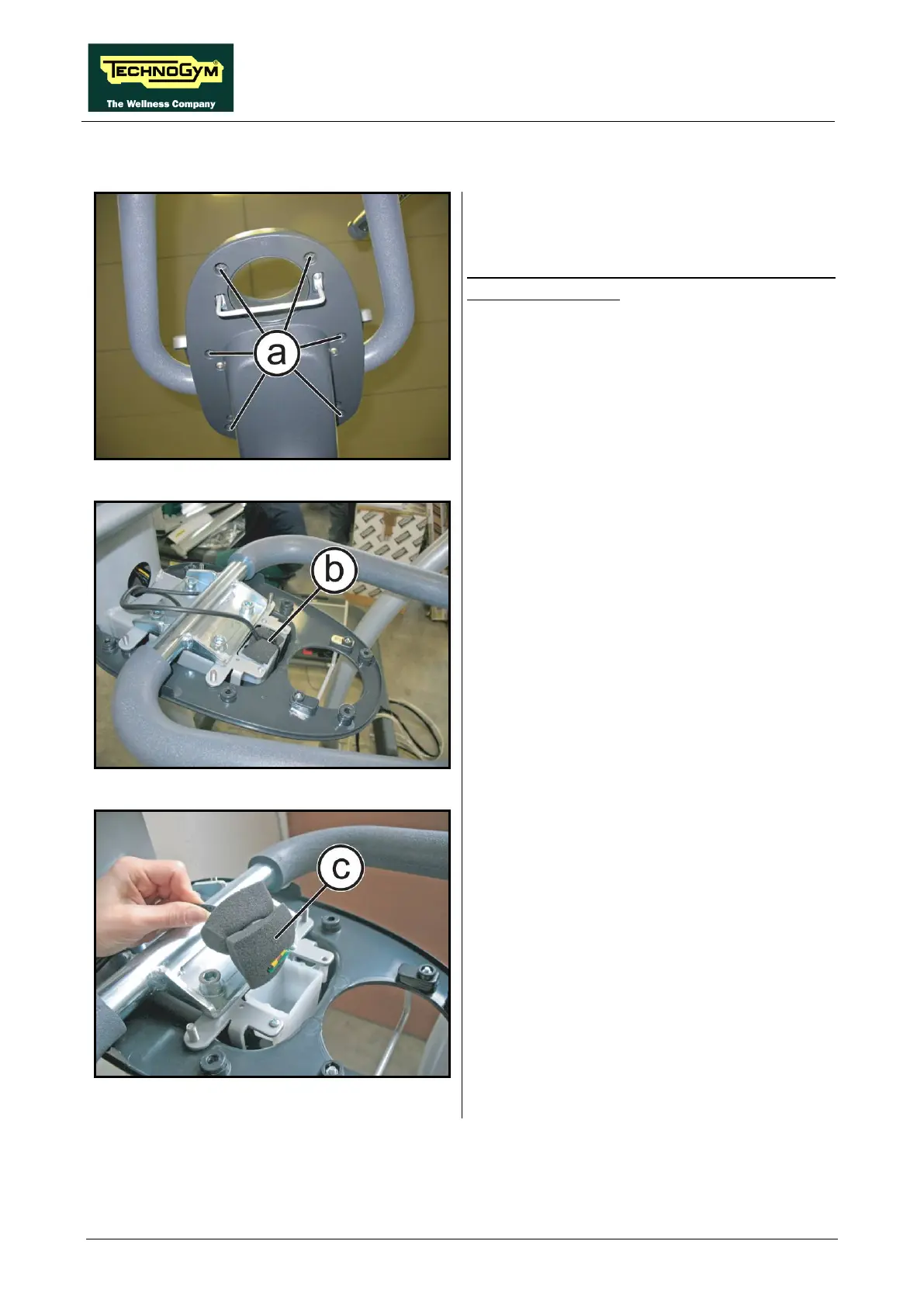

Figure 7.4-1
Turn off the machine and unplug the mains lead
from the wall outlet:
1. Back off the 6 screws (a)
using a medium
Phillips screwdriver.
2. Remove the upper cover.
Figure 7.4-2
3. Cut the cable-tie (b)
and remove the Cardio
Receiver from its housing.
Figure 7.4-3
4. Cut the second cable-
tie and remove the
protection sponge (c).
Continued on following page ...
