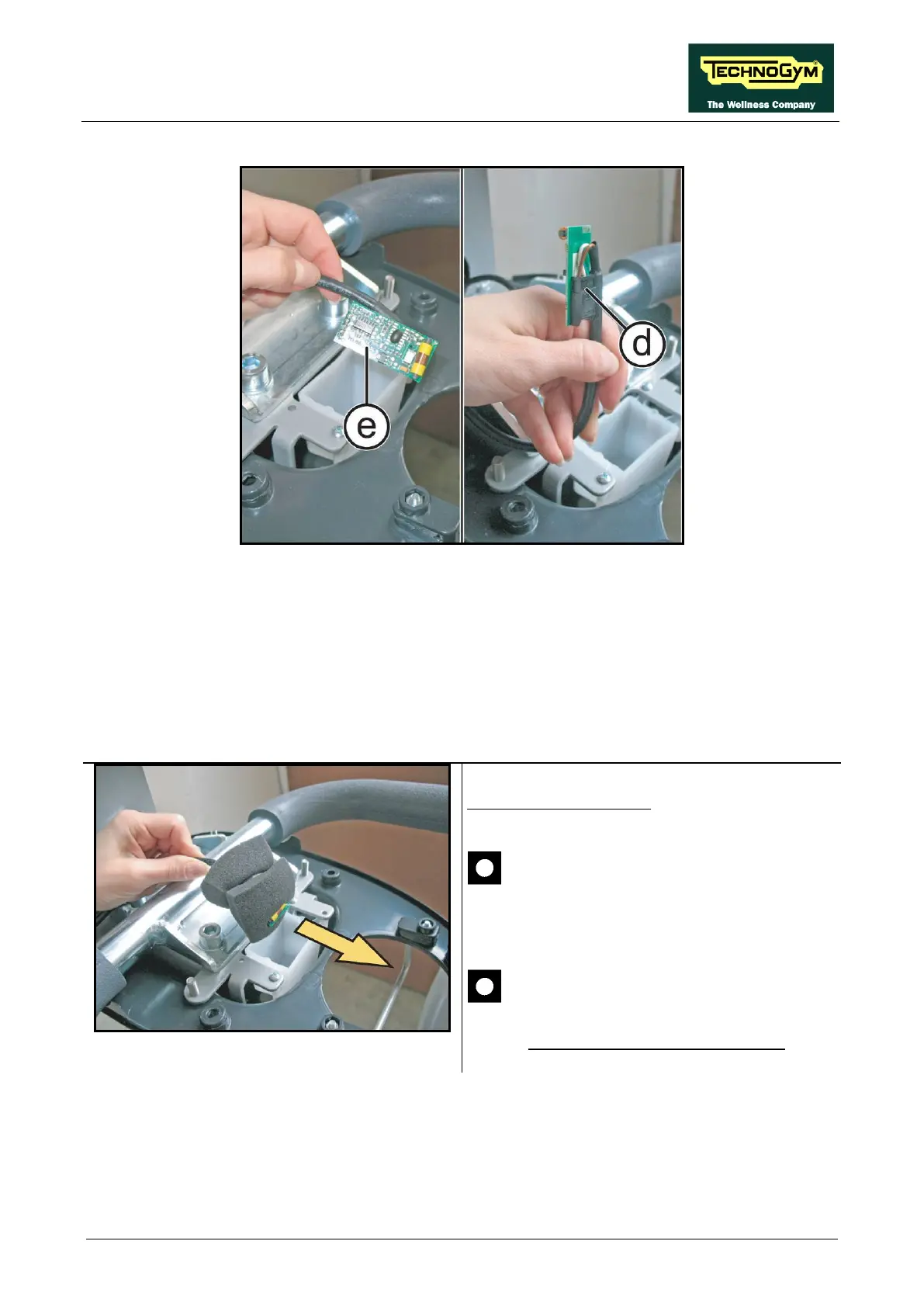

Figure 7.4-4
5. Unplug the connector (d).
6. Remove the Cardio Receiver (e).
To reassemble the Receiver,
follows the above steps in the reverse order.
Figure 7.4-5
Note for the reassembly:
CAUTION: fold the sponge (c) on the
Board avoiding
using a cable-tie to fix it.
CAUTION: Reinsert the receiver
inside its housing, so that the coil is:
downwards and toward the user.
