Technogym EXCITE+ - LCD Inverter (C)

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.12
7.2.2.4. LCD Inverter (C)

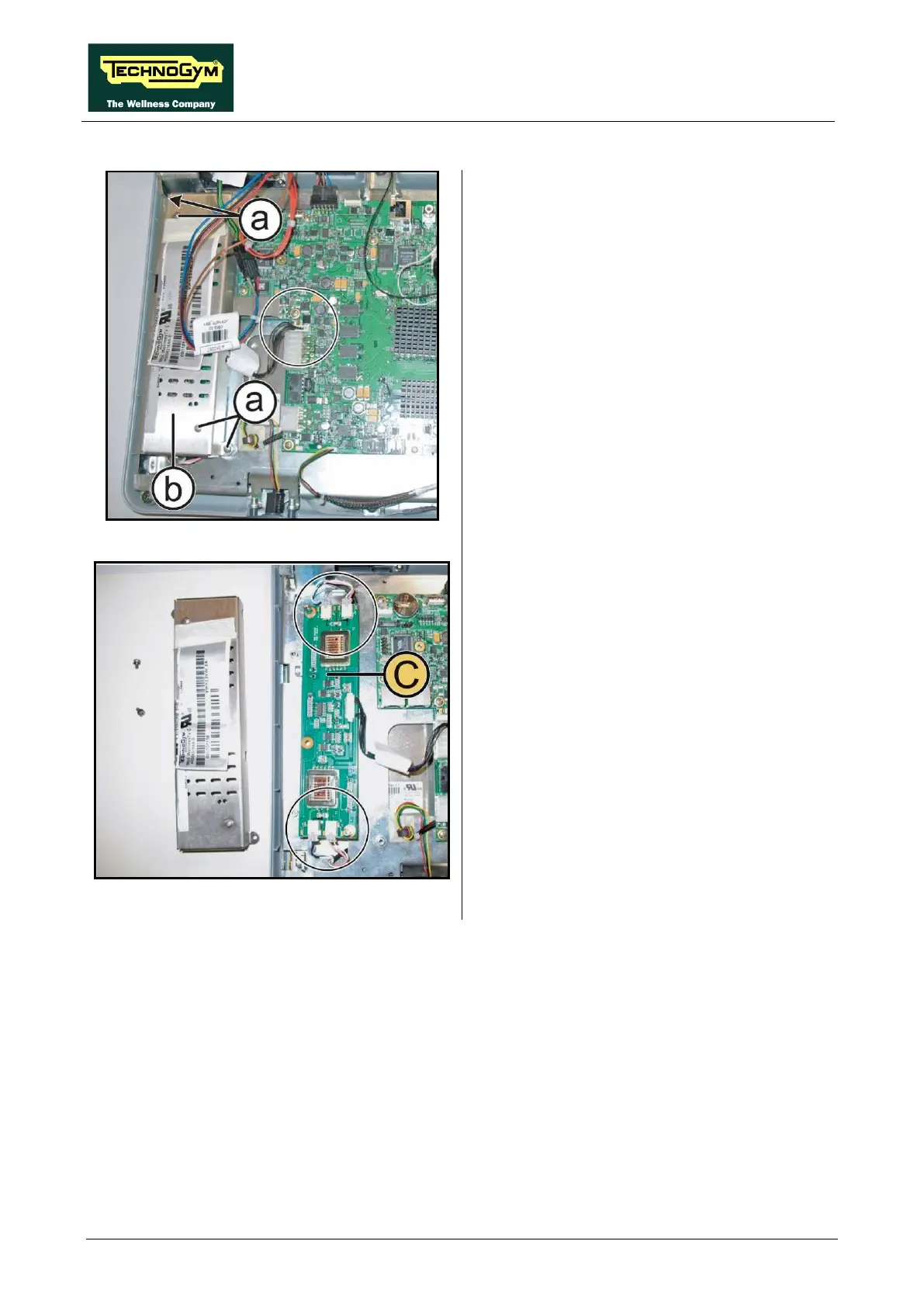

Figure 7.2-13
1. Un
plug the connectors highlighted in the
Figure.
2. Back off the 4 screws (a)
, using a medium
Phillips Screwdriver.
3. Remove the LCD inverter cover (b).
Figure 7.2-14
4.
Unplug the 4 connectors highlighted in
figure.
5. Remove the LCD Inverter board (C).
To reassemble the Tuner Boards, follows the
above steps in the reverse order.
