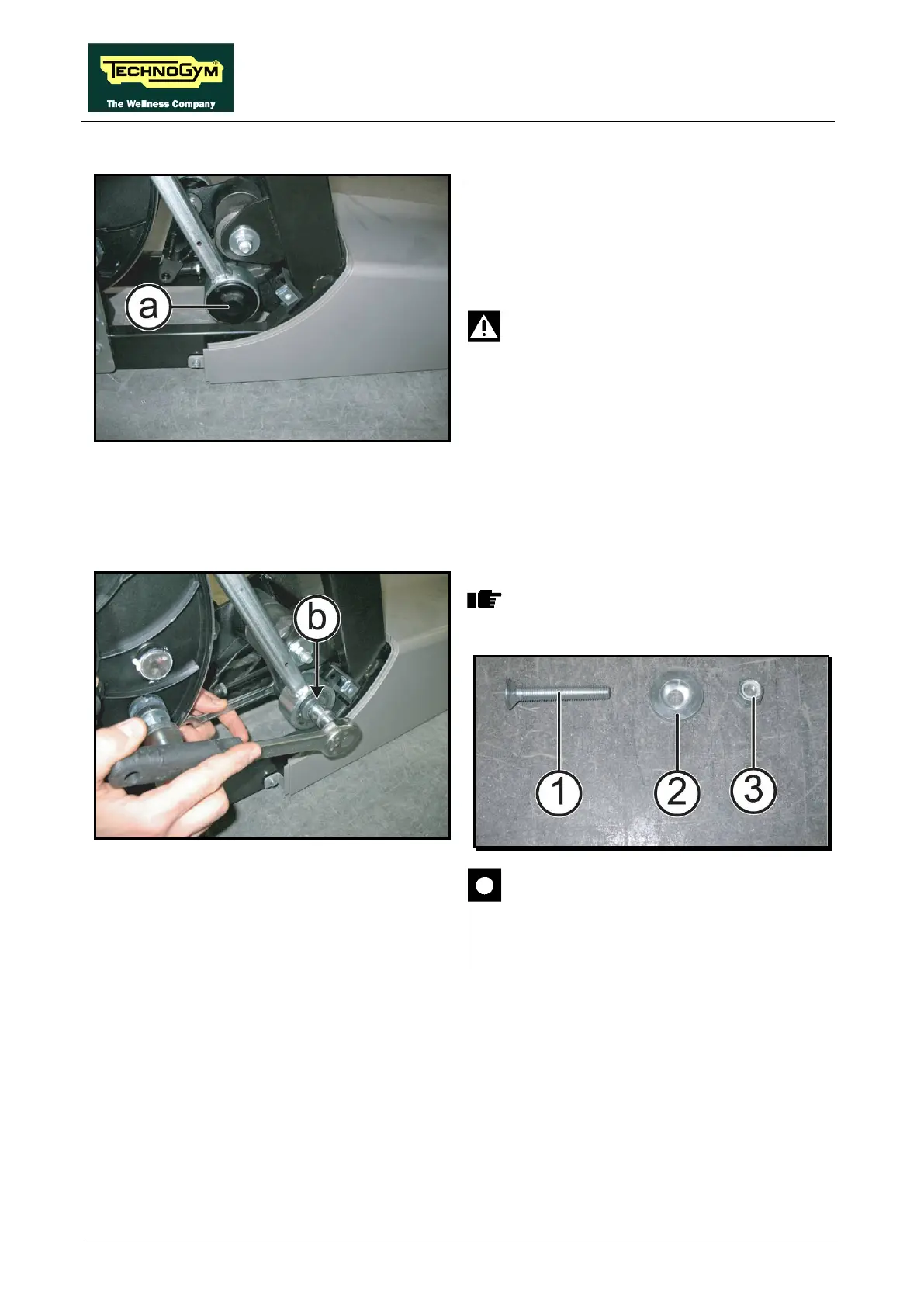

7.12.2. DISASSEMBLING THE LONG CONNECTING-ROD (R – L)
Figure 7.12-5
Carry out the procedure described in paragraph:
7.8.2. “Disassembling the lateral guards”.
WARNING: be careful to the magnets
on pulley during the disassembly.
1. Remove the bearing cover (a)
, using a small
flat screwdriver.
Figure 7.12-6
2. Back off the screw (b) using a 5mm
hexagonal wrench, locking the nut on the
opposite side using a 17mm wrench, as
shown in the figure at the side.
During the reassembly take care of the
parts order, as detailed below:
CAUTION: During the reassembly
lock down the screw (b) using a torque
wrench set for 44Nm.
Continued on following page ...
