Technogym EXCITE+ - Disassembly the Hand Sensor Board and the Connector Board

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.35
7.11. DISASSEMBLY THE HAND SENSOR BOARD AND THE
CONNECTOR BOARD

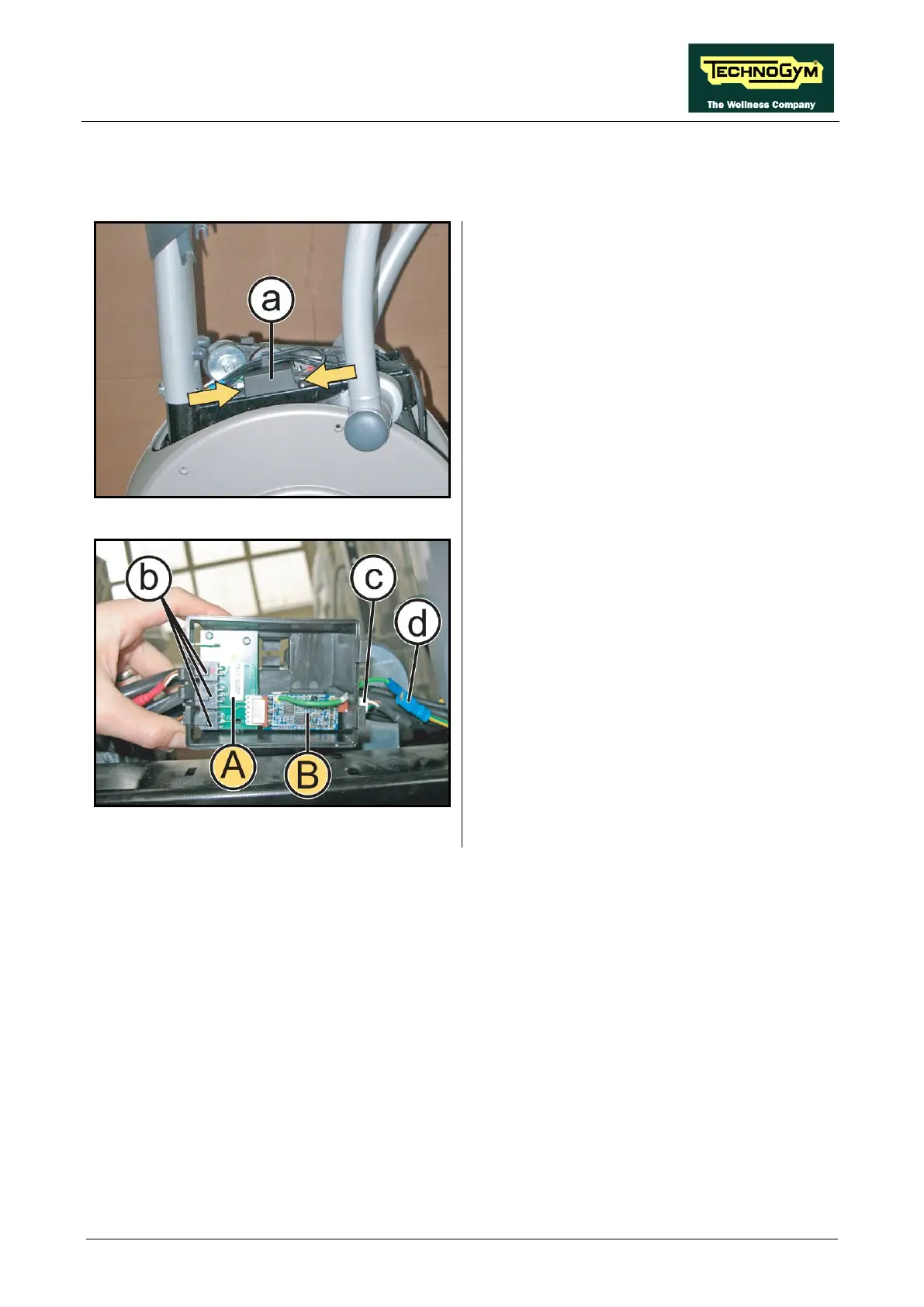

Figure 7.11-1
Carry out the procedure described in paragraph:
7.8.1. “Disassembling the upper guard”.
1.
Press lightly in the sense of arrows, the cover
of board protection (a).
2. Remove it from the frame.
Figure 7.11-2
3. Disconnect the connector (b), (c)
, and the
fast-on (d).
4. Remove the Connector board (A)
and the
Hand Sensor board (B)
and replace if
necessary.
To reassemble the boards,
follows the above steps in the reverse order.
