8.2. TENSIONING THE BELT
8.2.1. TENSIONING A USED BELT

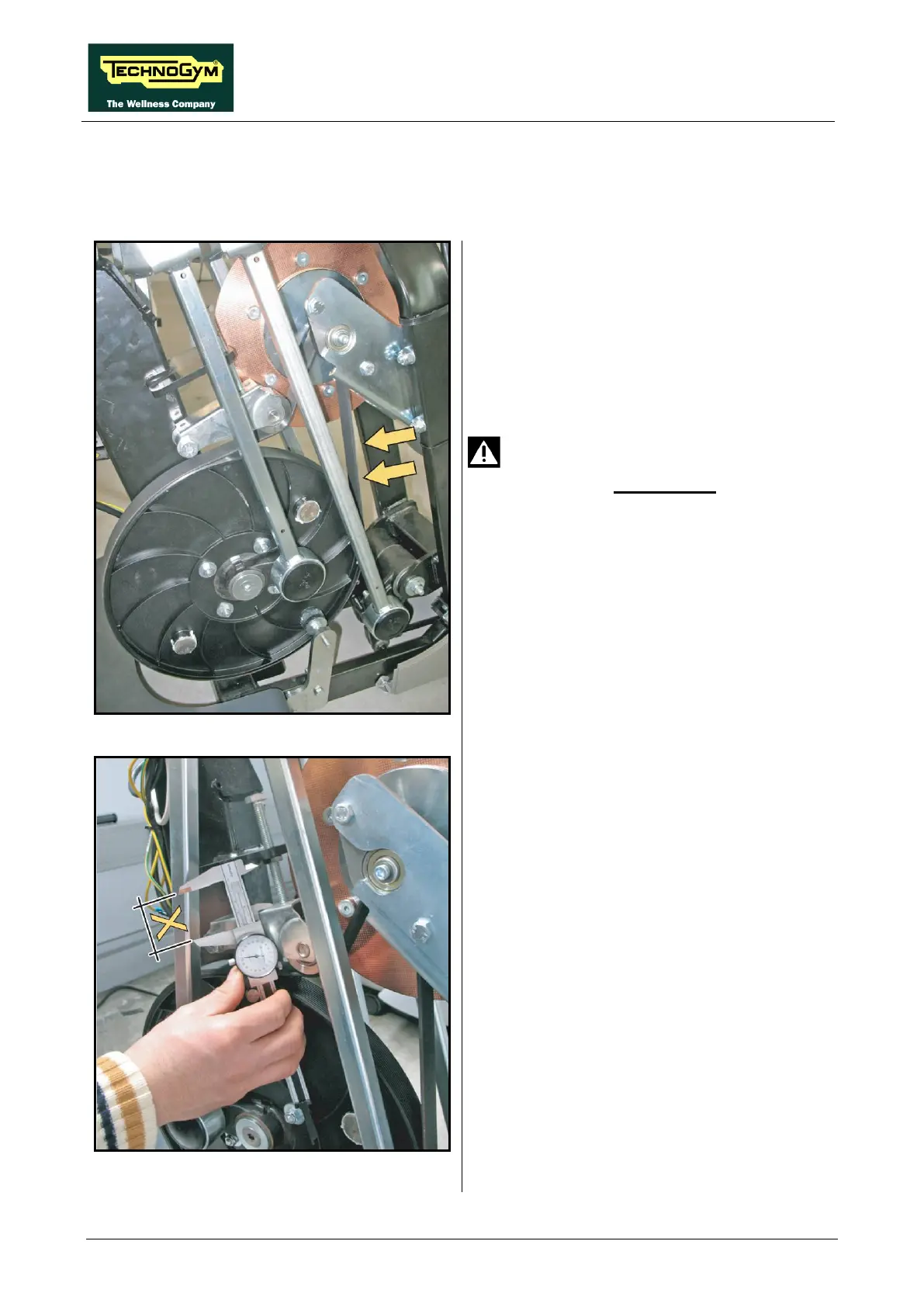

Figure 8.2-1
WARNING: The right tension of belt
must be: 149Hz±10Hz
and must be
detected on the long arm of the belt, as
indicated by the yello
w arrows in the
figure at side.
Figure 8.2-2
1. Check that the distance “X” is the same taken
before having removed it, as in Figure
7.14-1.
Continued on following page ...
