Technogym EXCITE+ - Disassembling the Brake Winding

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.45
7.16. DISASSEMBLING THE BRAKE WINDING

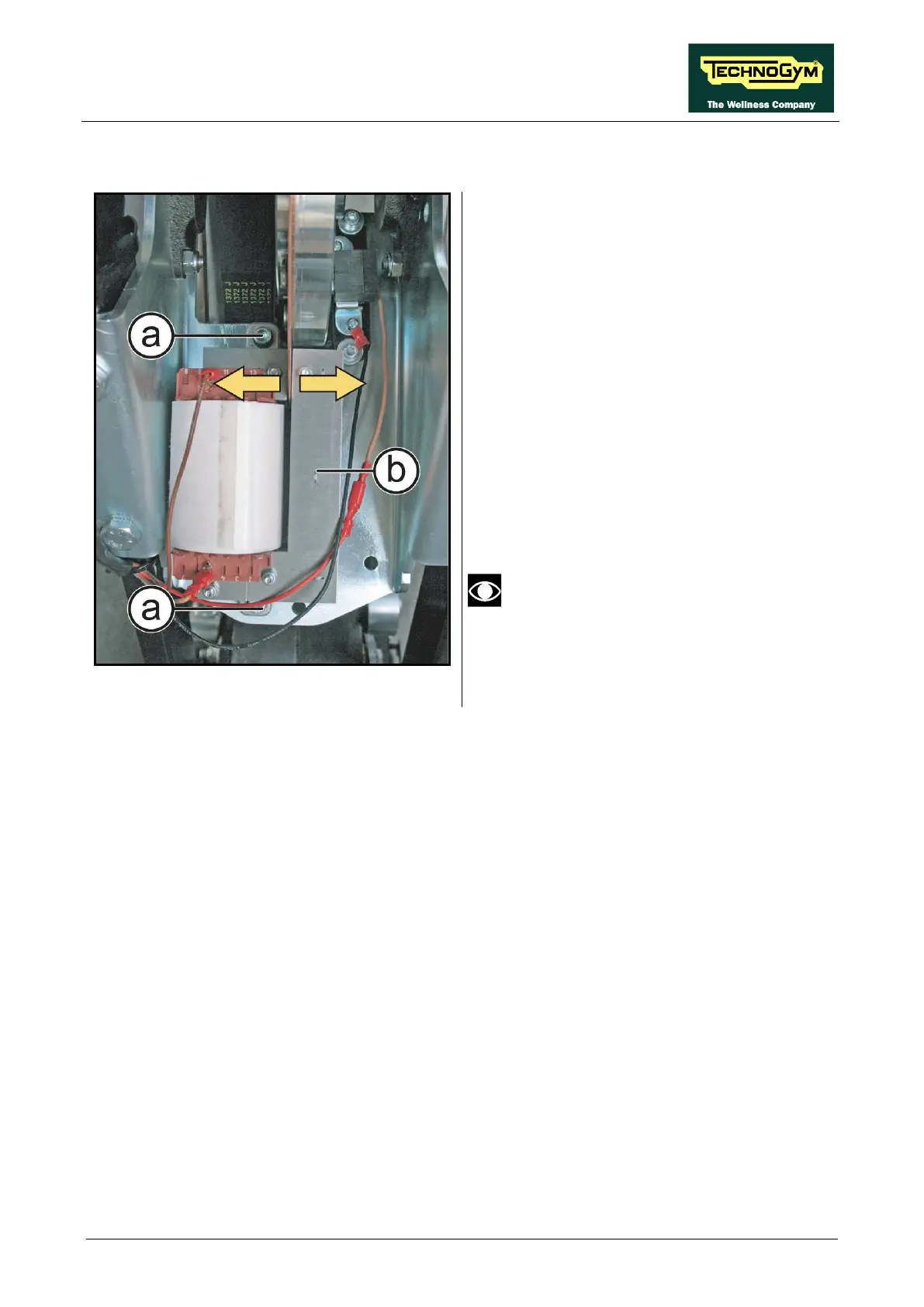

Figure 7.16-1
Carry out the procedure described in paragraph:
7.8.2. “Disassembling the lateral guards”.
1. Disconnect the fast-
on from the brake
winding.
2. Loosen the 2 screws (a)
using a 4mm
hexagonal wrench.
3.
Remove the brake winding group, taking care
to not bump the copper disk of the flywheel.
To reassemble the brake winding, carry out the
above steps in reverse order.
At the end of the reassembly, adjust
the brake position as described at the
paragraph: 8.4. “
Positioning the brake
winding”.
