Technogym EXCITE+ - Self-Powered Models

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.49
7.17.2. SELF-POWERED MODELS

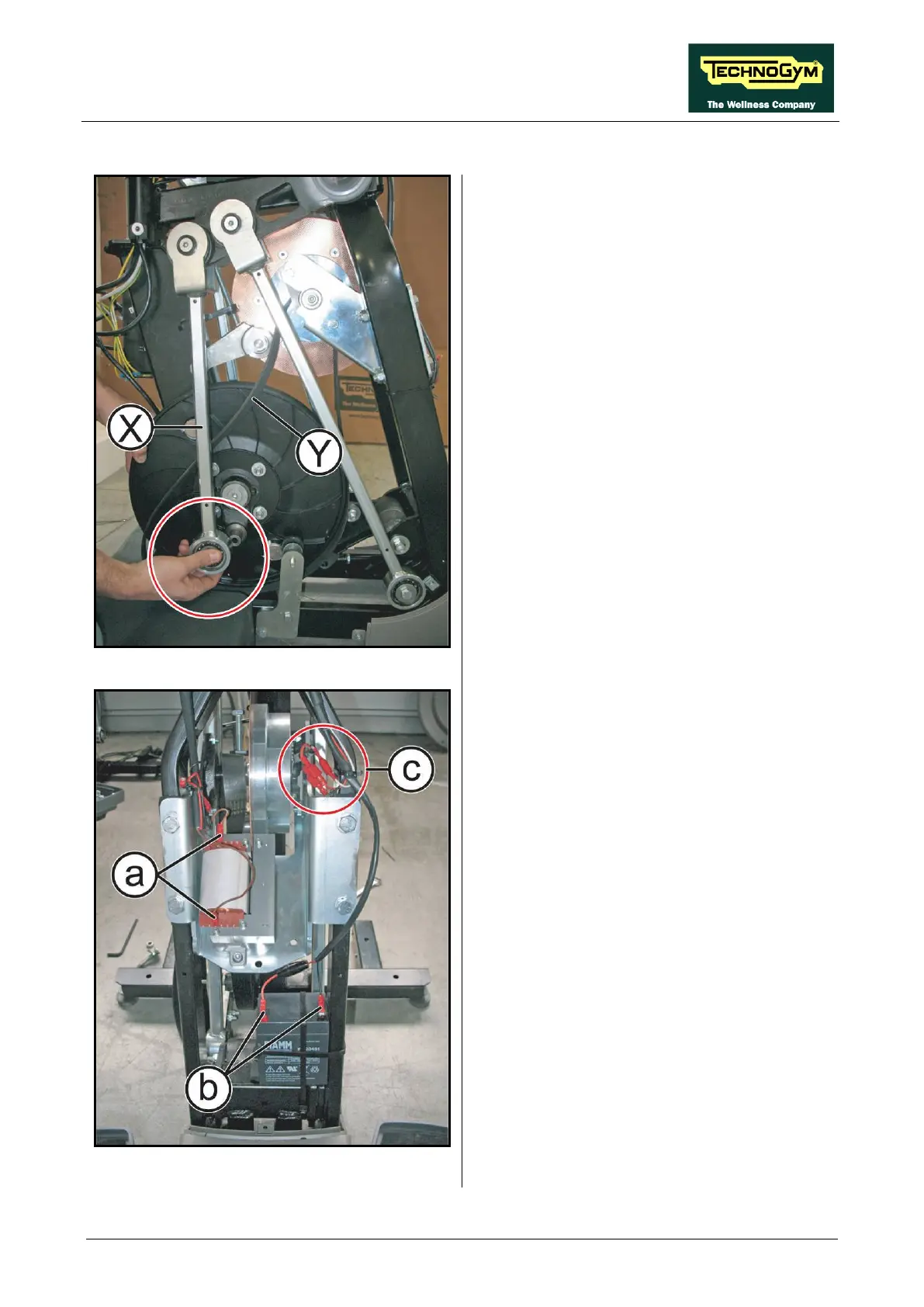

Figure 7.17-8
Carry out the procedure described in paragraph:
7.13. “Disassembling the Primary shaft and ” to
the point (2).
1.
Disconnect the lower end of the short
connecting-rod (X) and remove the belt (Y),
as shown in the figure at the side.
Figure 7.17-9
2. Disconnect all the 7 fast-
on in the figure: 2
from brake winding (a), 2 from battery (b)
and 3 from the stator (c).
Continued on following page ...
