Technogym EXCITE+ - Disassembling the Lever

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.32
7.9. DISASSEMBING THE LEVERS AND THE UPPER
BALANCER
7.9.1. DISASSEMBLING THE LEVER

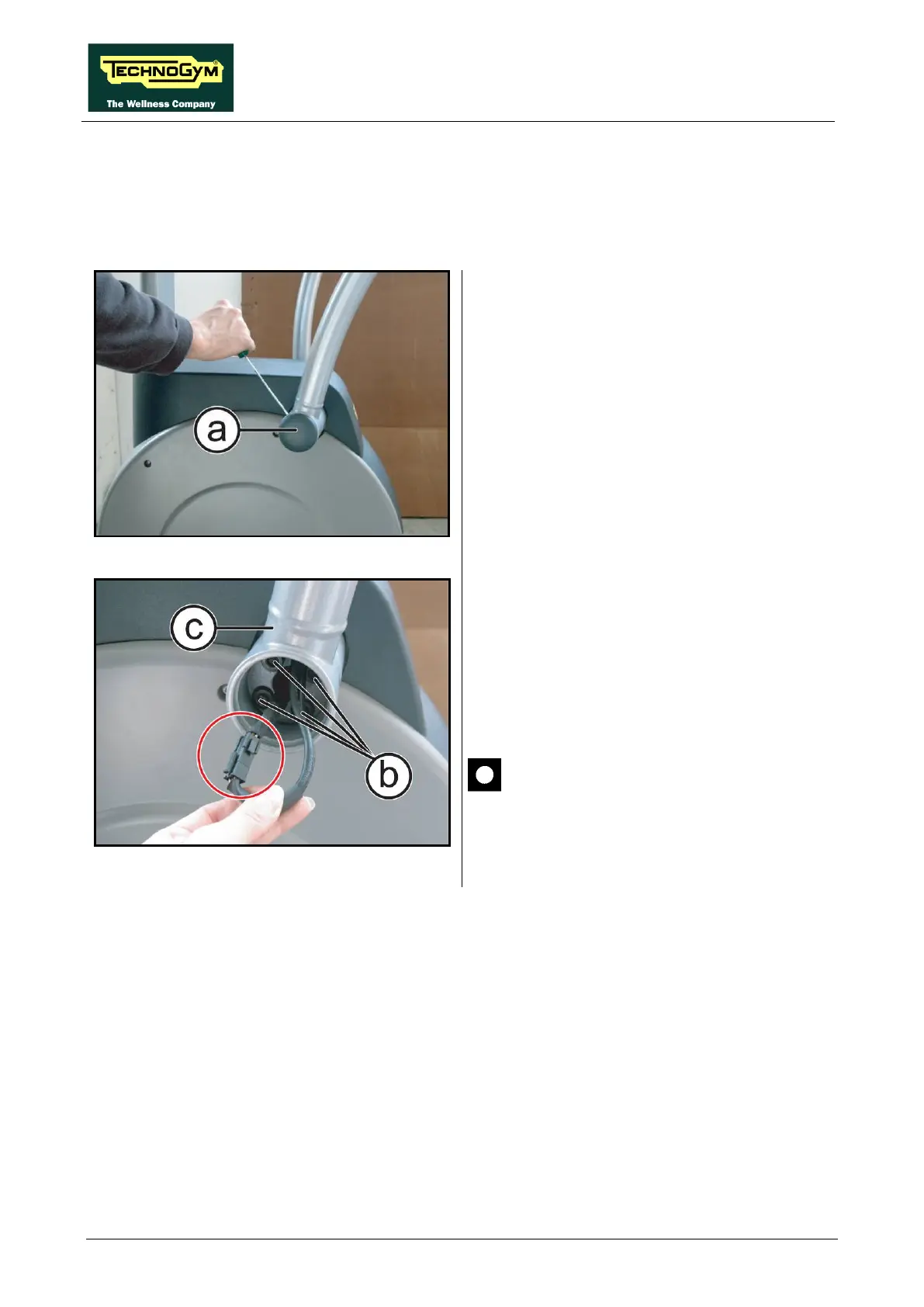

Figure 7.9-1
1. Remove the plastic plug (a)
using a small
Phillips screwdriver.
Figure 7.9-2
2.
Unplug the connector highlighted in the
figure.
3. Back off the 4 screws (b)
using a 5mm
hexagonal wrench.
4. Remove the lever (c).
CAUTION: During the reassembly,
apply a drop of Loctite and lock down
the screws (b) using a torque wrench
set for 40Nm.
