Technogym EXCITE+ - Tuner DVB-T Board (B)

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.10
7.2.2.2. Tuner DVB-T board (B)

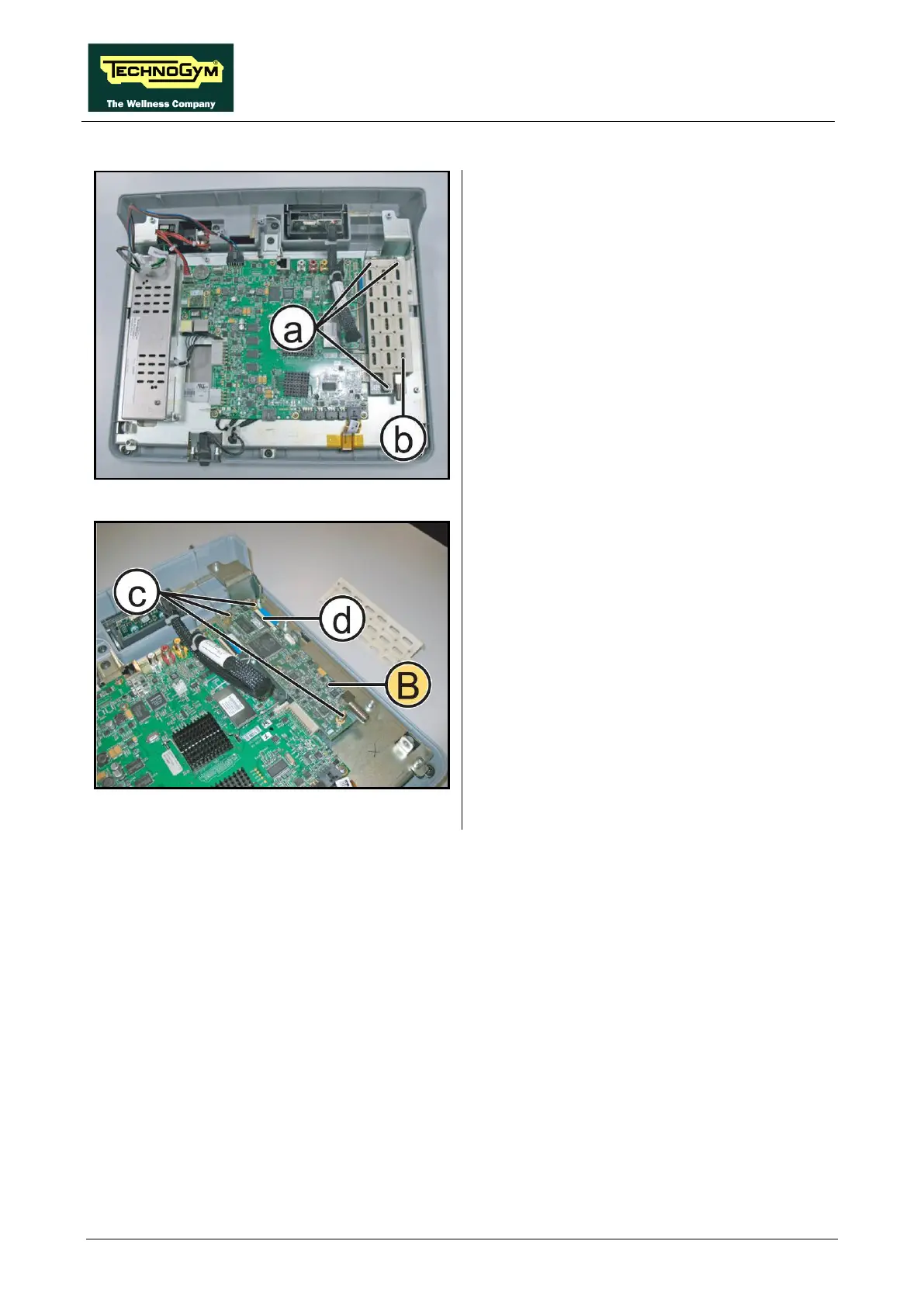

Figure 7.2-9
1. Back off the 3 screws (a)
using a medium
Phillips Screwdriver.
2. Remove the protection guard of Tuner board
(b).
Figure 7.2-10
3. Back off the 3 spacers (c).
4.
Lift up the black tab and disconnect the flat
cable (d).
5. Remove the Tuner Board (B).
To reassemble the Tuner Board, follows the
above steps in the reverse order.
