EXCITE + - Crossover: Technical Service guide- Ver. 4.1

Pagina 7.9

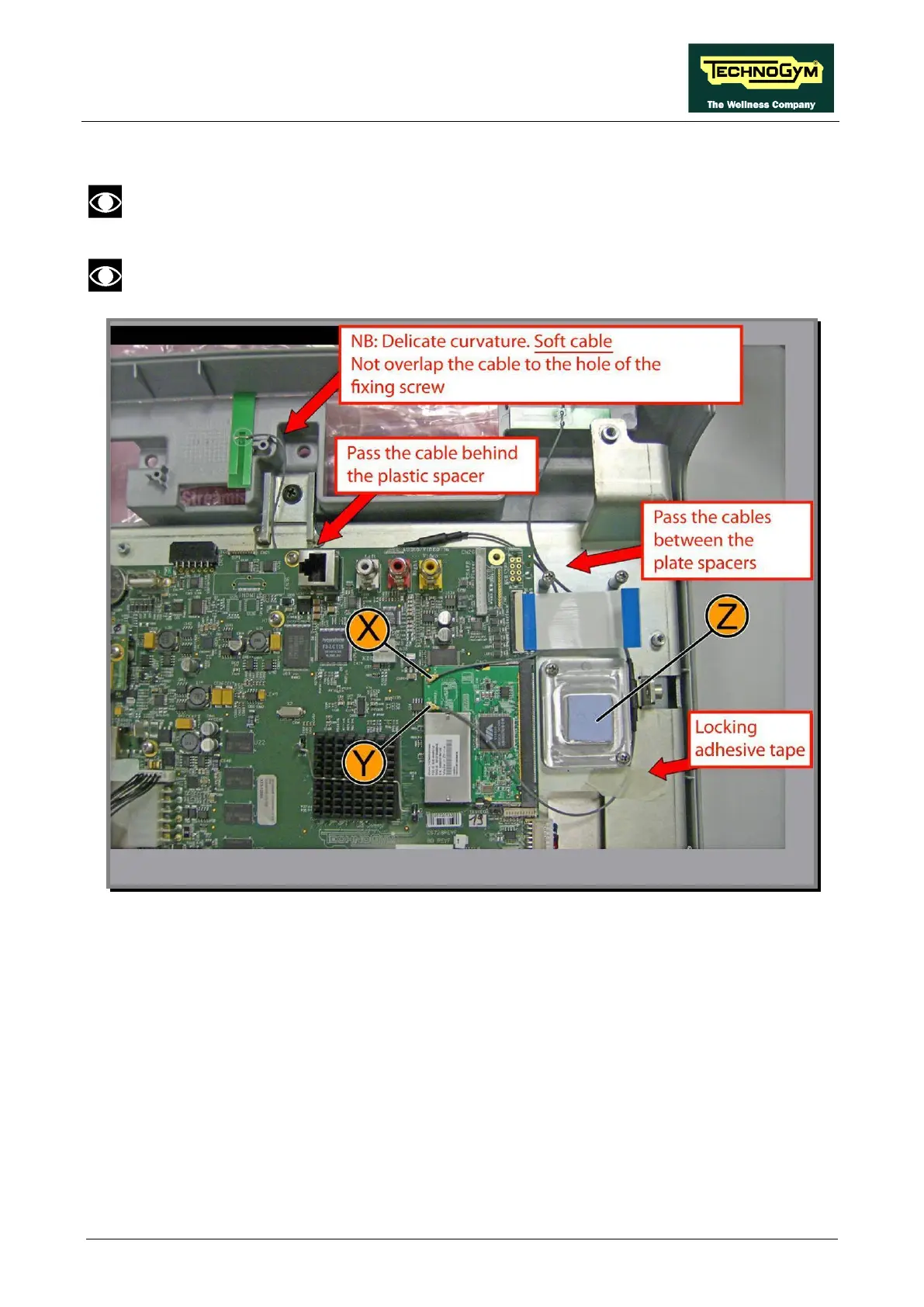

To reassemble the antenna cables (X) and (Y), follow the routing shown below.

The Dissipater (Z) is only on the ATSC and ISDB-T version.

Figure 7.2-8
