Technogym EXCITE+ - Disassembling the Hand Sensors

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.27

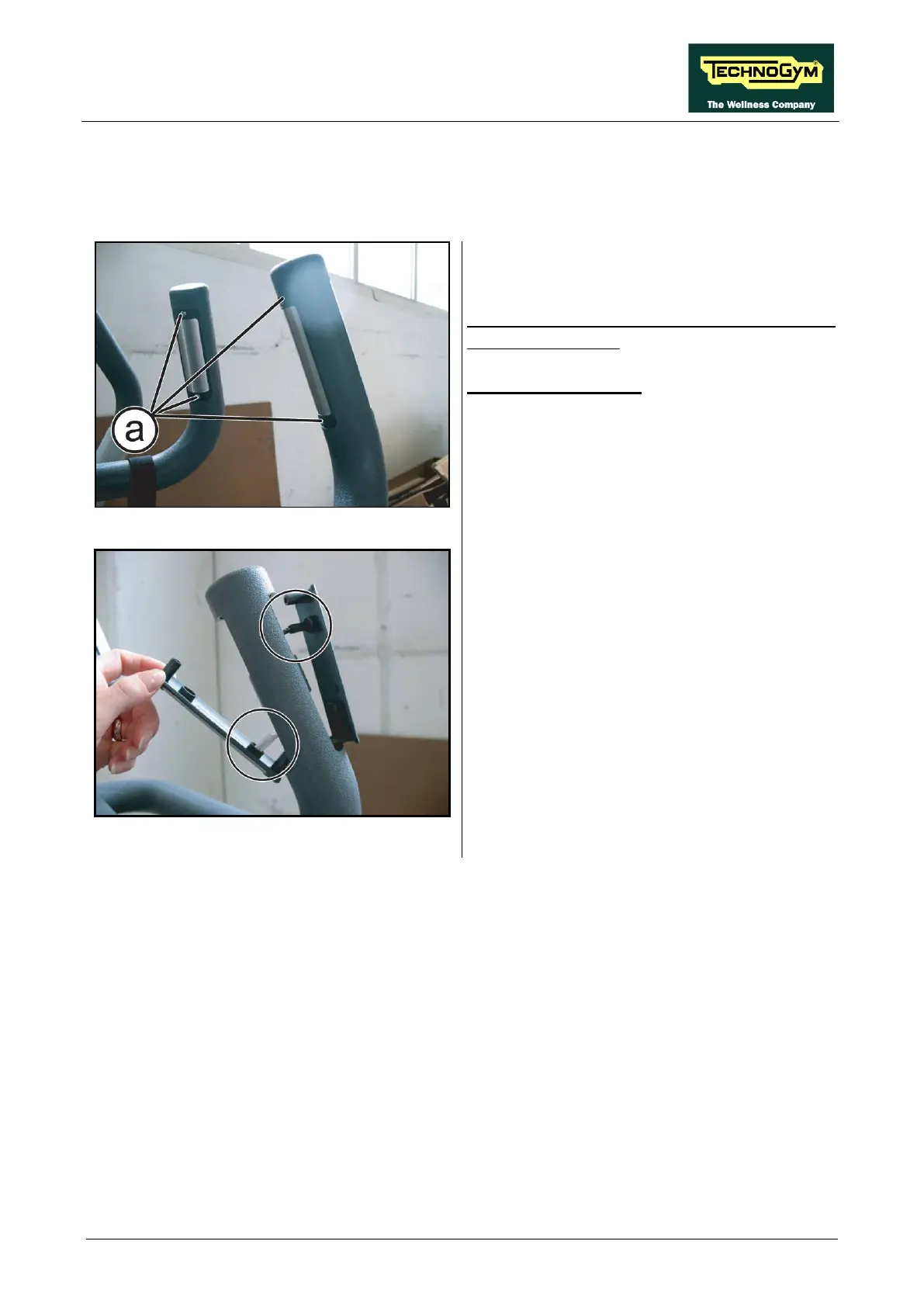

7.7. DISASSEMBLING THE HAND SENSORS
7.7.1. DISASSEMBLING THE HAND SENSOR ON THE HANDGRIPS
Figure 7.7-1
Turn off the machine and unplug the mains lead
from the wall outlet:
For each hand sensor:
1. Back off the 2 screws (a) using
a medium
Phillip screwdriver.
Figure 7.7-2
2. Disconnect the 2 fast-
on highlighted in figure
and remove the HS plates.
To reassemble the hand sensors, follows the
above steps in the reverse order.
