7.7.2. DISASSEMBLING THE HAND SENSORS ON LEVERS

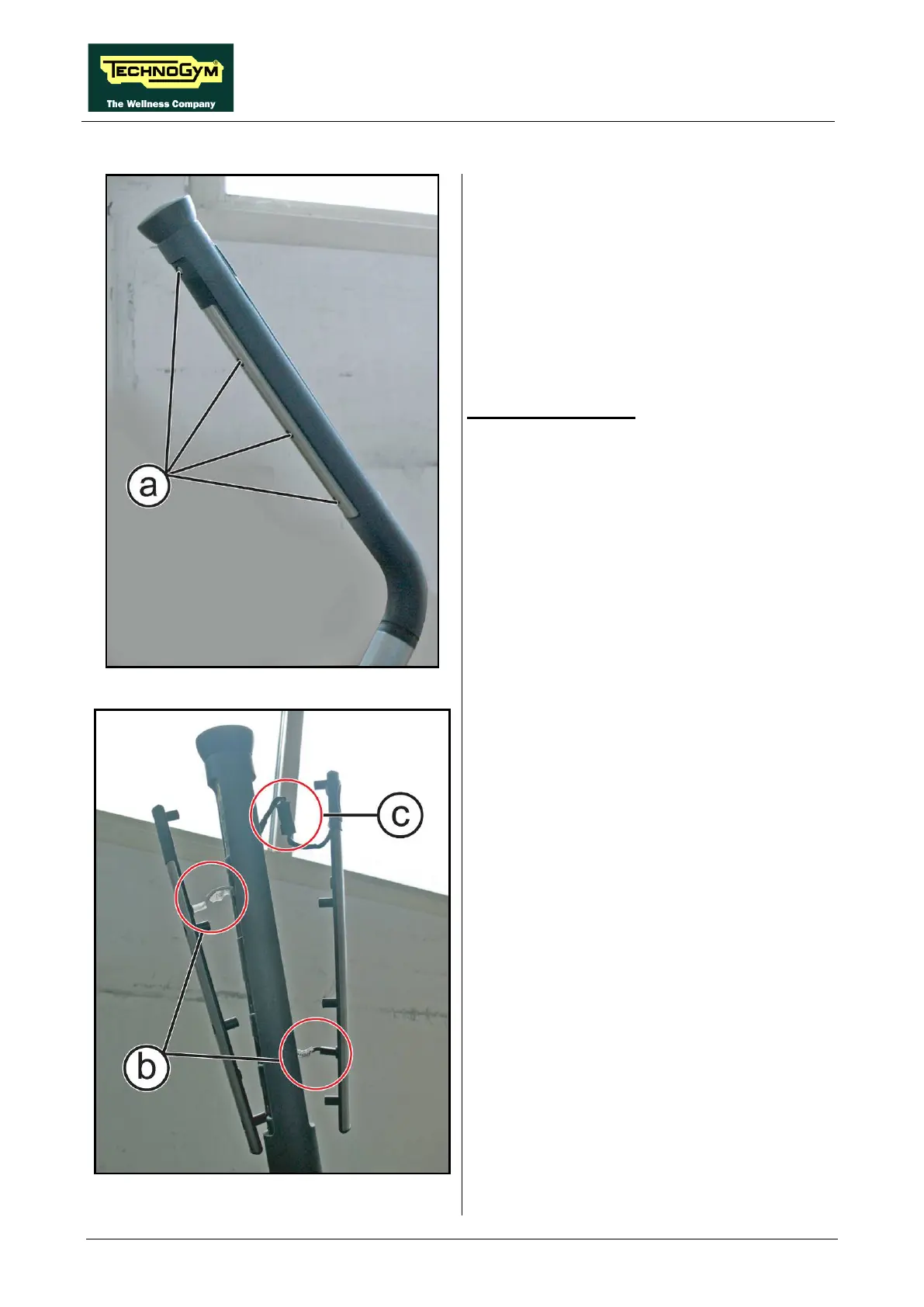

Figure 7.7-3
For each hand sensor
1. Back off the 4 screws (a)
Phillips screwdriver.
Figure 7.7-4
2. Lift up the HS plates.
3. Disconnect the 2 fast-on (b)
connector (c) of touch sensor.
To reassemble the hand sensors, follows the
above steps in the reverse order.
