Technogym EXCITE+ - Disassembly the Central Lower Guard

EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.31
7.8.3. DISASSEMBLY THE CENTRAL LOWER GUARD

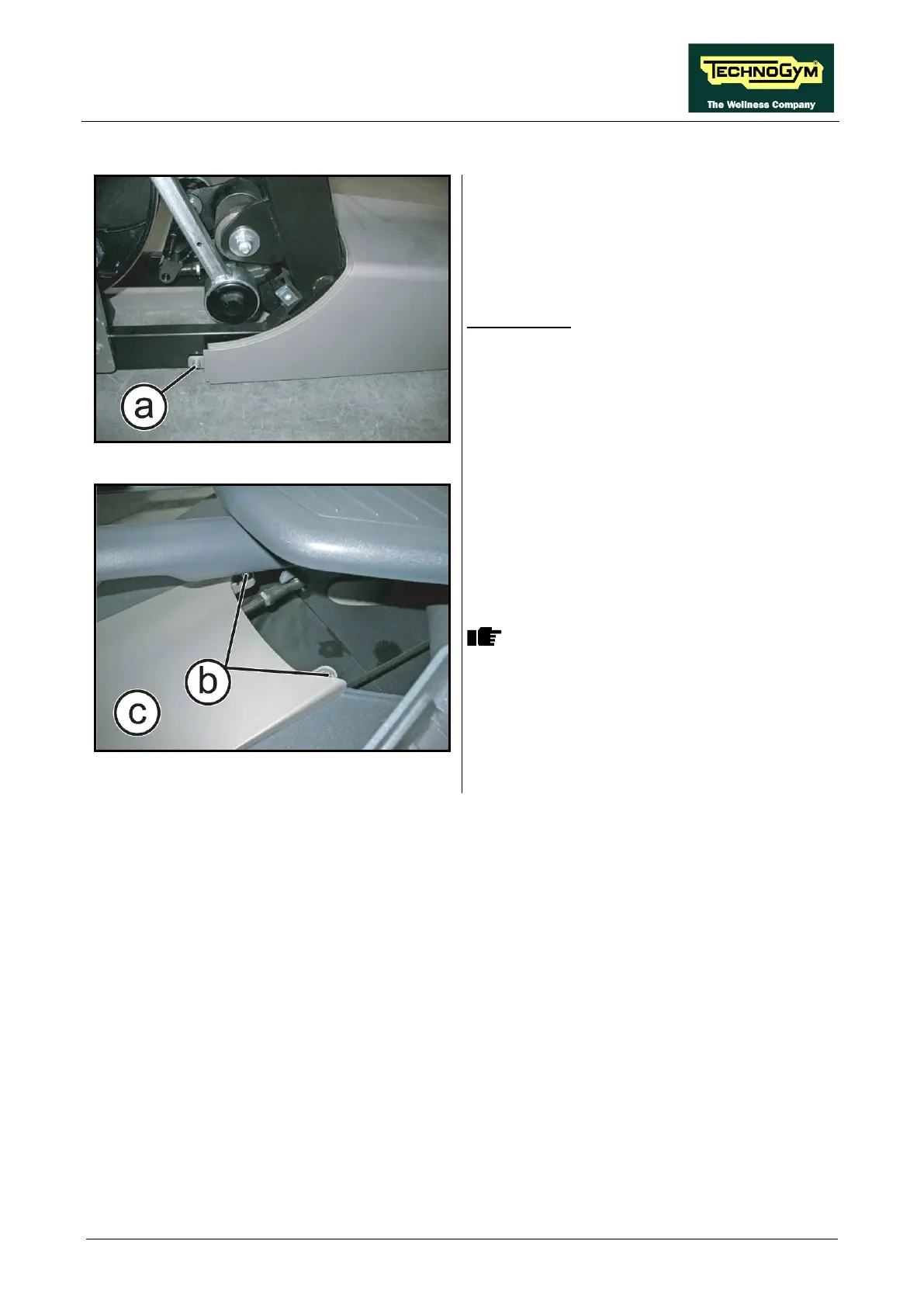

Figure 7.8-5
Carry out the procedure described in paragraph:
7.8.2. “Disassembling the lateral guards”.
On both side:
1. Back off the screw (a)
using a 5mm
hexagonal wrench.
Figure 7.8-6
2. Back off the 2 screws (b)
using a 5mm
hexagonal wrench.
3. Remove the central guard (c)
, sliding on the
front side along the frame tubular.
To easily remove the central guard,
place the two platforms in parallel
position.
To reassemble the central lower guards
follows the above steps in the reverse order.
