7.15. DISASSEMBLING THE SPEED SENSOR
Only for models: POWERED.

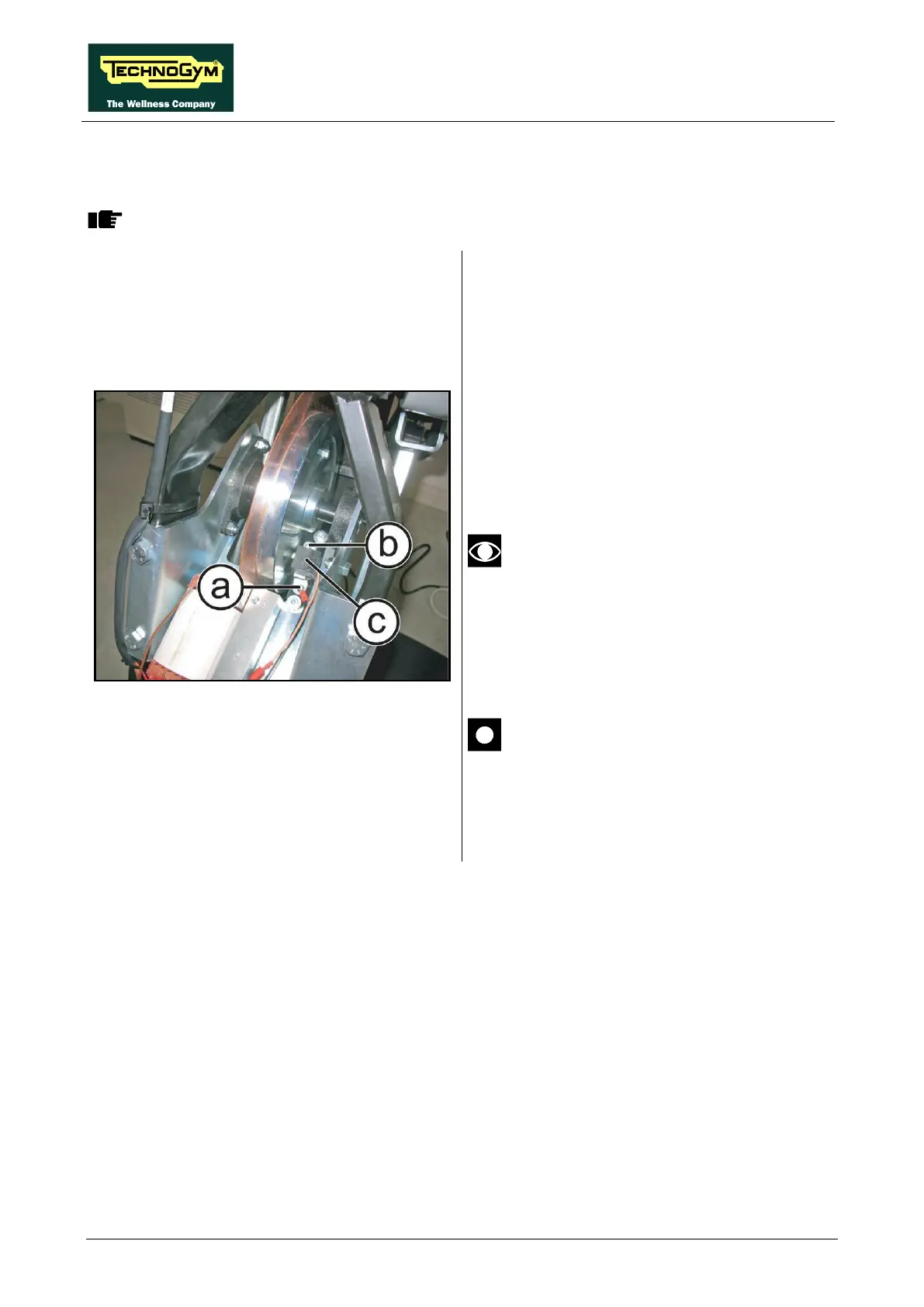

Figure 7.15-1
Carry out the procedure described in paragraph:
7.8.2. “Disassembling the lateral guards”.
1. Back off the screw (a)
using a medium
Phillips screwdriver and disconnect the
ground cable.
2. Back off the screw (b)
using a medium
Phillip screwdriver.
3. Remove the speed sensor (c).
Whenever necessary to replace the
speed sensor, you will need to realign
it on its plastic support
To reassemble the speed sensor, carry out the
above steps in reverse order.
CAUTION: At the end of the
reassembly, adjust the speed sensor
position as described at the
paragraph: 8.3. “
Positioning the speed
sensor”.
