7.2.2. VISIO DISPLAY 15” (CPU BOARD)

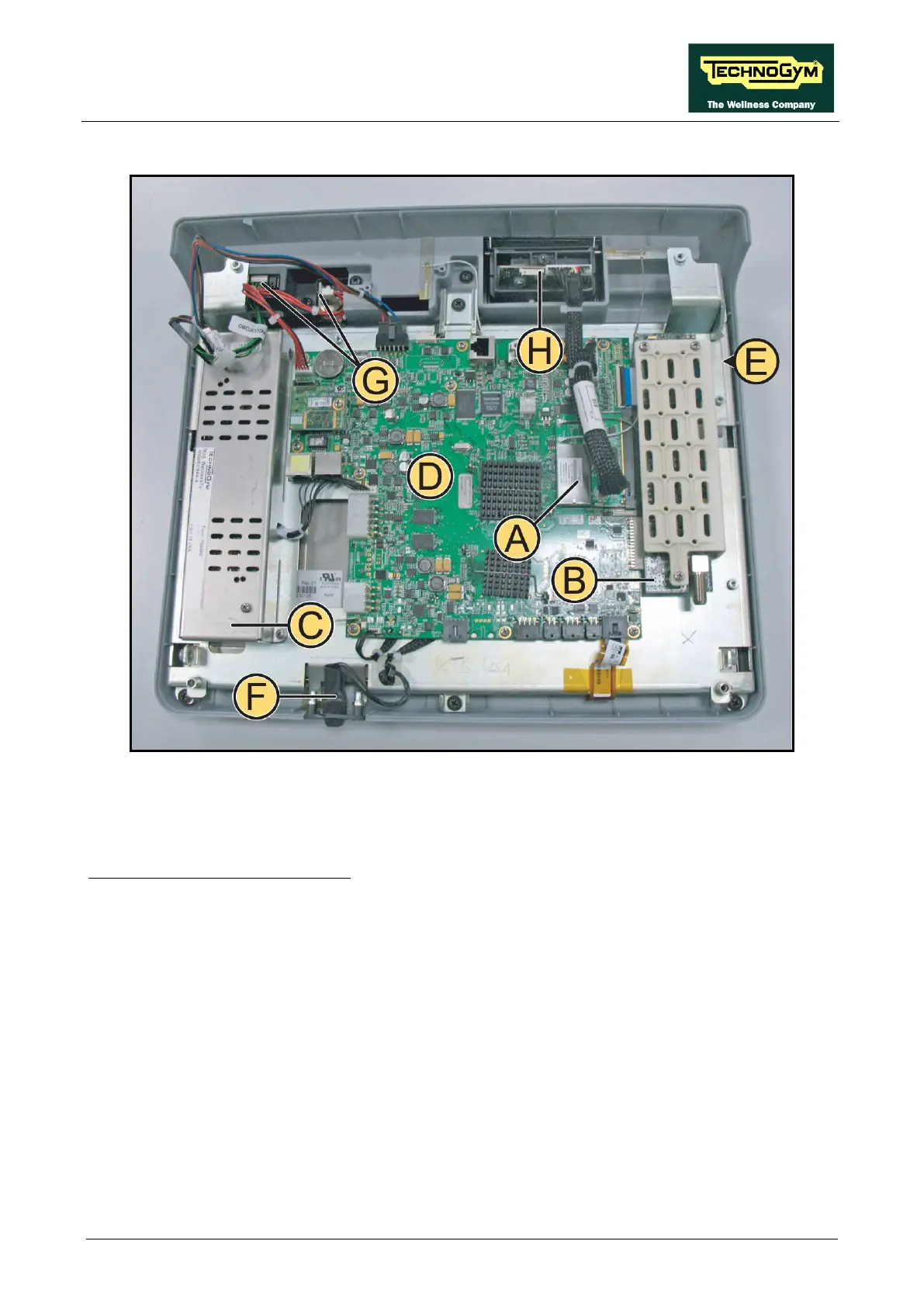

Figure 7.2-4
Carry out the procedure described in paragraph: 7.1. “Disassembling the display”.
Place the display on a work bench:
It is now possible to remove the following components:
• Wireless Board (A);
• TUNER Board (B);
• LCD Inverter (C);
• CPU board (D);
• LCD + Touch Screen (E);
• Headphone Jack (F);
• Dual TGS reader+ USB port (G);
• iPod Docking Station (H);
• Front plugs TGS + USB and cover.
Continued on following page…
