7.14. DISASSEMBLY THE TENSION SYSTEM

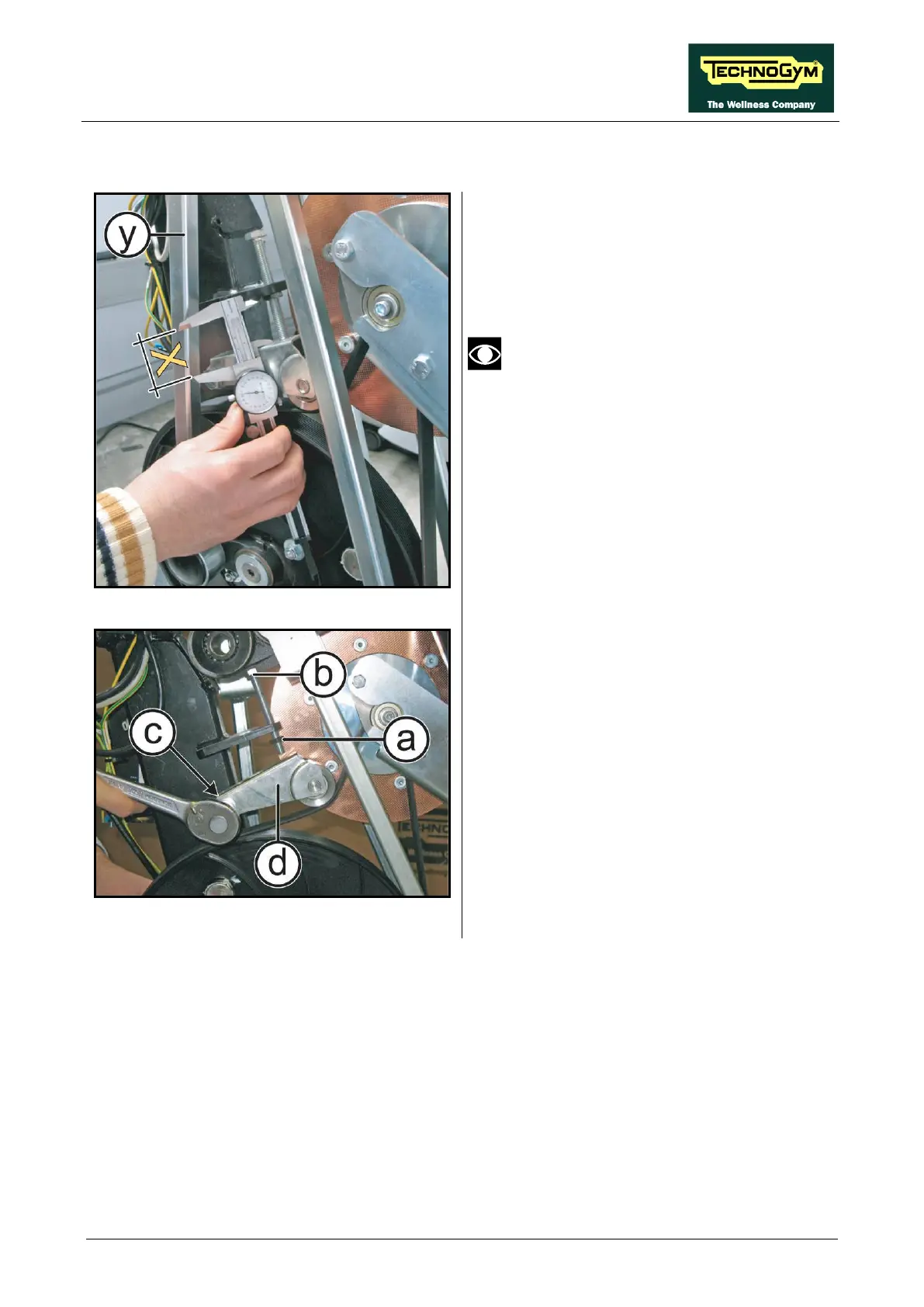

Figure 7.14-1
Take note abou
t the measure “X” on
the adjusting bolt of the tension
system .
1. Remove the connecting-rod (y)
as described
at the paragraph: 7.12.1. “
Disassembling the
short connecting-rod (R – L)”.
Figure 7.14-2
2. Loosen the nut (a) and after the screw (b),
using a 17mm wrench.
3. Back off the screw (c)
, using a 19mm
wrench.
4.
Once decreased the tension on the belt,
remove the tension system group (d).
To reassemble the tension system group, carry
out the above steps in reverse order.
