8. ADJUSTMENTS
8.1. CENTRING THE BELT

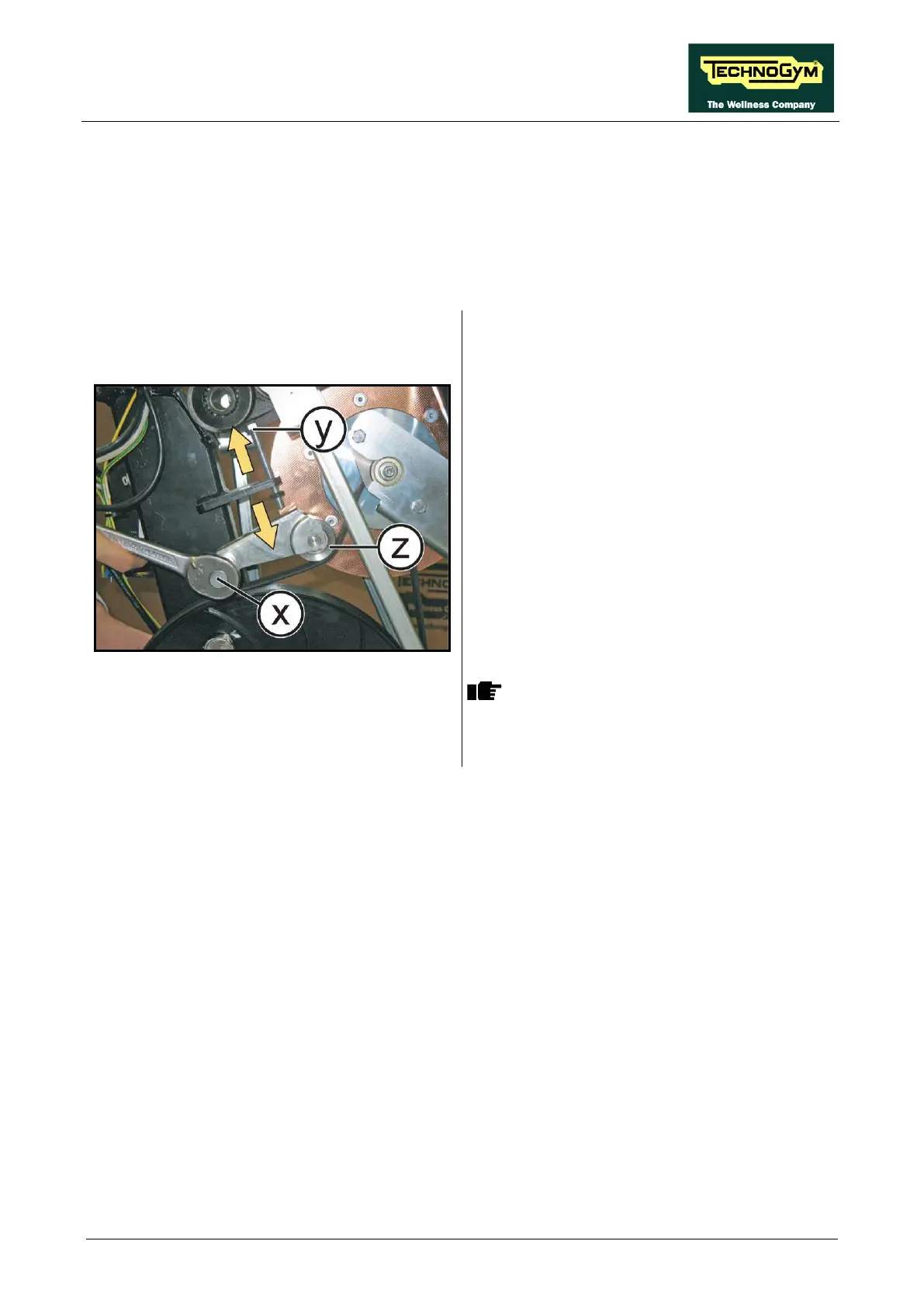

Figure 8.1-1
1. Place the belt on the pulley and then on the
flywheel shaft. Take care to leave one race
free on the r
ight side and one free on the left
side.
2. Tighten a little bit the screw (x).
3. Adjust the tension acting on the screw (y).
4. Rotate the pulley clockwise and counter-
clockwise and take care that the belt works
completely within the tension system wheel
(z). Try to exercise at maximum level.
5.
Once stabilized the position of the belt, lock
down the screw (x).
In case of misalignment act first on the
screw (x) of tension system
, which can
be not correctly lock down.
