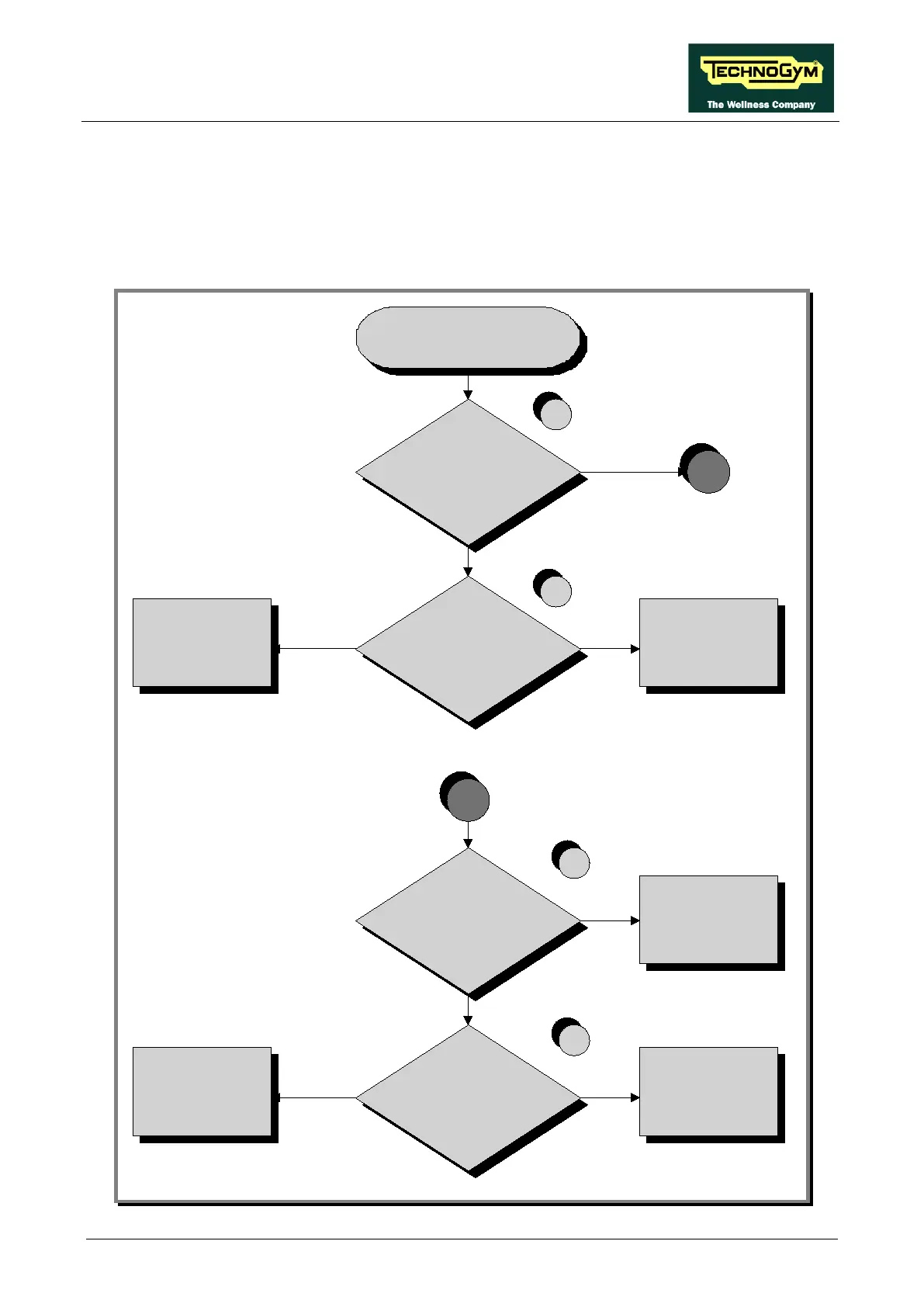

6.14. THE MACHINE DOES NOT READ THE TGS KEY
6.14.1. WISIOWEB MODELS
The machine displays this error if the TGS reader is not working properly, or if it is not supplied by
the Disoplay Board.
THE MACHINE DOES
NOT READ THE TGS
Is the voltag e at the input to the
TGS reader correct?
Is the voltag e at the output to
the Display Board correct?
Replace cable
CBQ-32 and/or CU132
1
2
YES
NO
YES
Replace the
Display Board
NO
A
Is the serial communication link
between the Display Board and
the TGS reader OK?
Replace the TGS reader. Is the
communication link between the
Display Board and the TGS
reader OK?
TGS reader defective
3
3
YES
NO
YES
Replace the
Display Board
NO
A
Replace the Dual TGS
reader
