EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.50

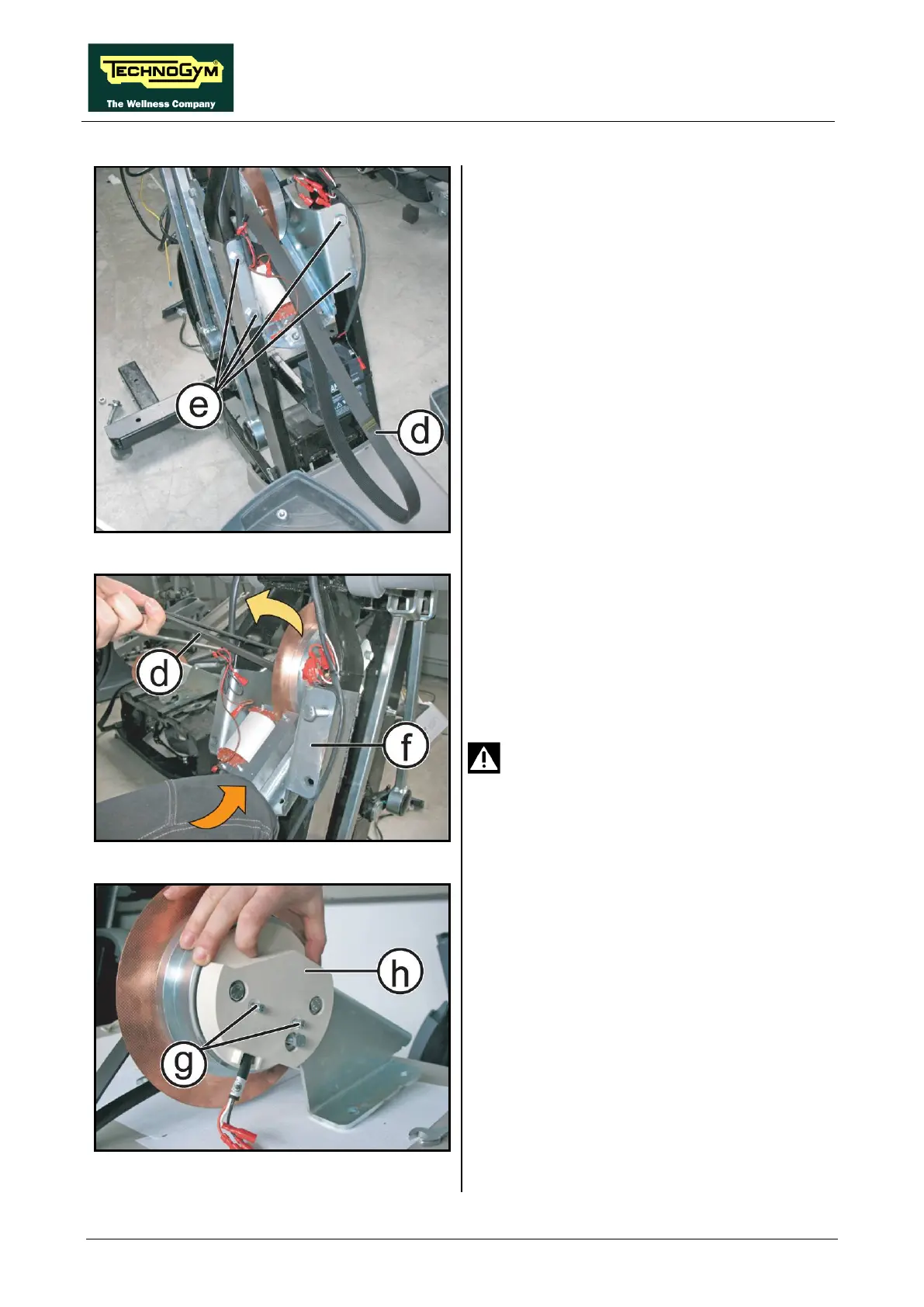

Figure 7.17-10
3. Bring forward the belt (d)
, as shown in the
figure at the side.
4. Back off the 4 screws (e)
using a 17mm
wrench, blocking the counter-
nuts on the
opposite side, using a wrench of equal size.
Figure 7.17-11
14. Remove the complete flywheel group (f)
from the machine supporting the weight of
the grou
p with your knee and pulling from
the belt (d) and bring it on a work bench.
CAUTION: Handle it with caution,
because the copper disk may bend
easily.
Figure 7.17-12
5. Back off the 2 screws (g)
using a 5mm
hexagonal wrench.
6. Remove the protection guard (h).
Continued on following page ...
