EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.51

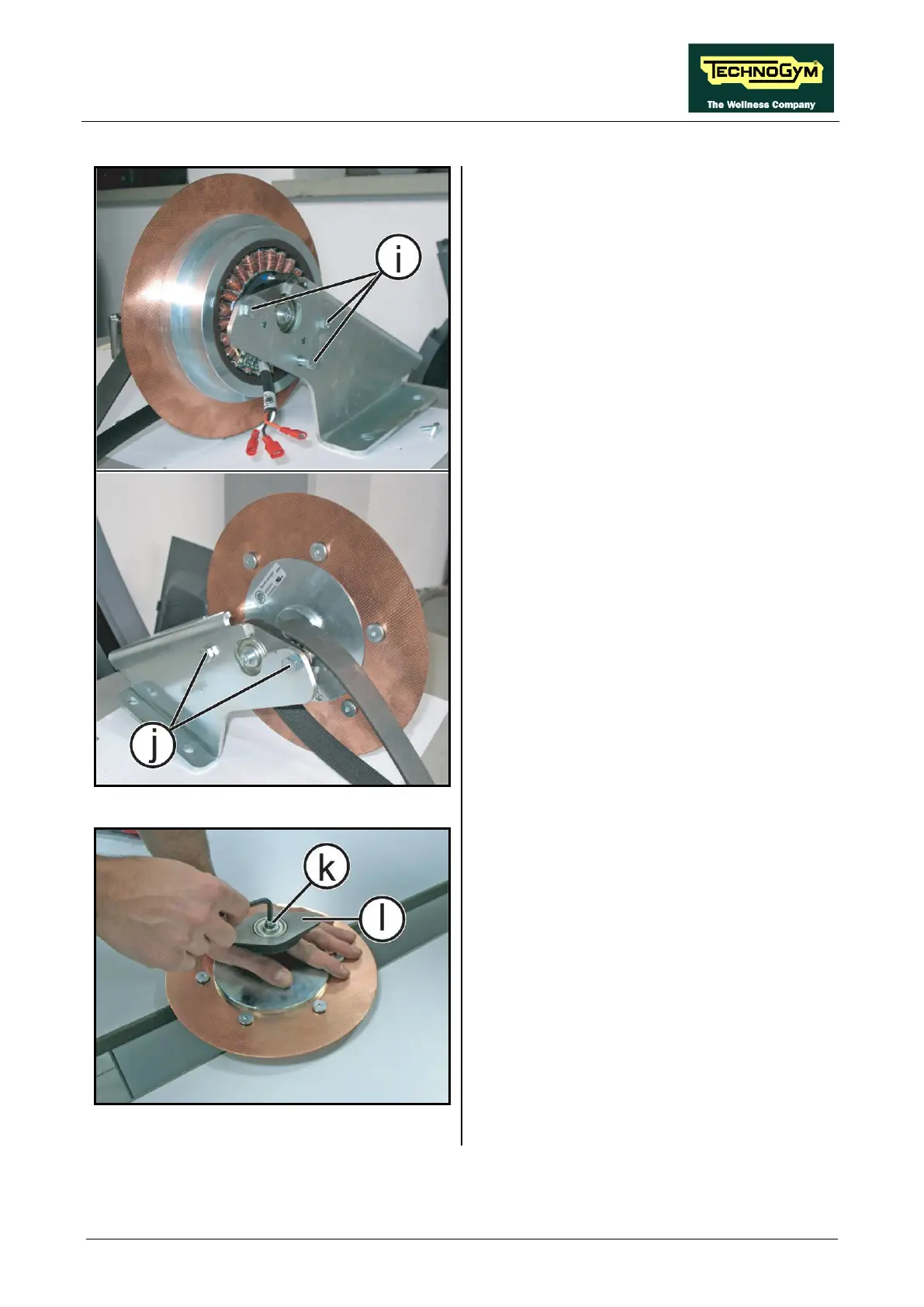

Figure 7.17-13
7. Back off the 3 screws (i) and the 2 screws (j),
using a 13mm wrench, blocking the counter-
nuts on the opposite side, using a wrench of
equal size.
Figure 7.17-14
8. Back off the screws (k)
hexagonal wrench.
9. Remove the support plate (l).
Continued on following page ...
