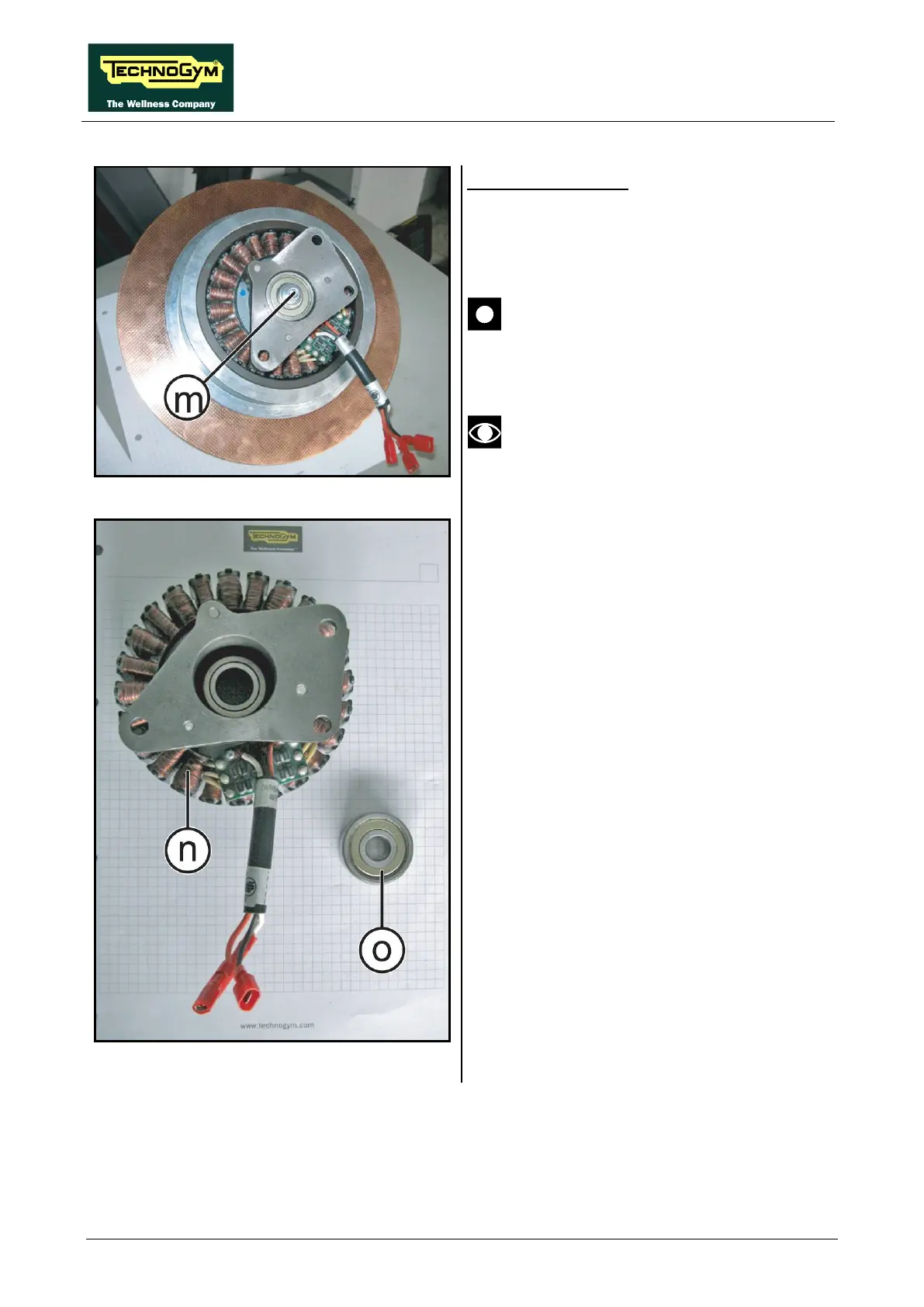

Figure 7.17-15
On the opposite side:
10. Back off the screw (m)
using a 5mm
hexagonal wrench.
CAUTION: During reassembly, lock
down the screws (k) and (m) using a
torque wrench set for 9Nm.
Once reasse
mbly the stator into its
housing, rotate it to check that there
are no specific noises.
Figure 7.17-16
11. Remove the stator group (n)
and the bearing
(o).
Continued on following page ...
