EXCITE + - Crossover: Technical Service guide- Ver. 4.1
Pagina 7.53

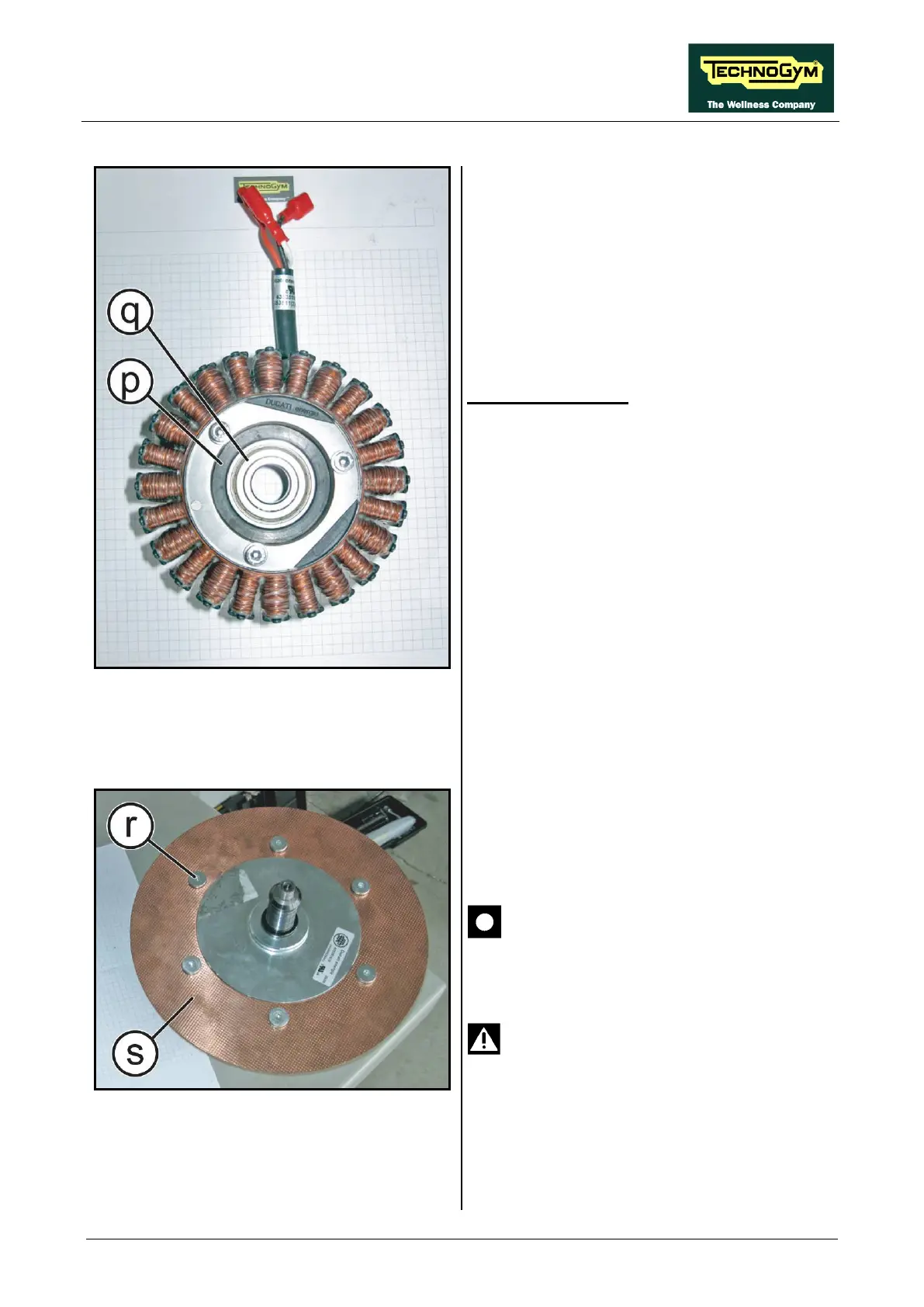

Figure 7.17-17
On the opposite side:
12. Remove the rubber bushing (p)
bearing (q).
Figure 7.17-18
13. Back off the 6 screws (r) using a 4mm
hexagonal wrench.
15. Remove the copper disk (s)
necessary.
To reassemble the flywheel group, carry out the
above steps in reverse order.
CAUTION: During reassembly, lock
down the screws (r), using a torque
wrench set for 6Nm.
Take particu
lar care with the copper
disk, as it bends easily and may then
cause problems after reassembly, by
brushing against the winding block.
Measure with a flatness comparator to
check the copper disk flatness, the
permissible margin is
0.15 mm.
