EXCITE + - Crossover: Technical Service guide- Ver. 4.1

Pagina 8.3

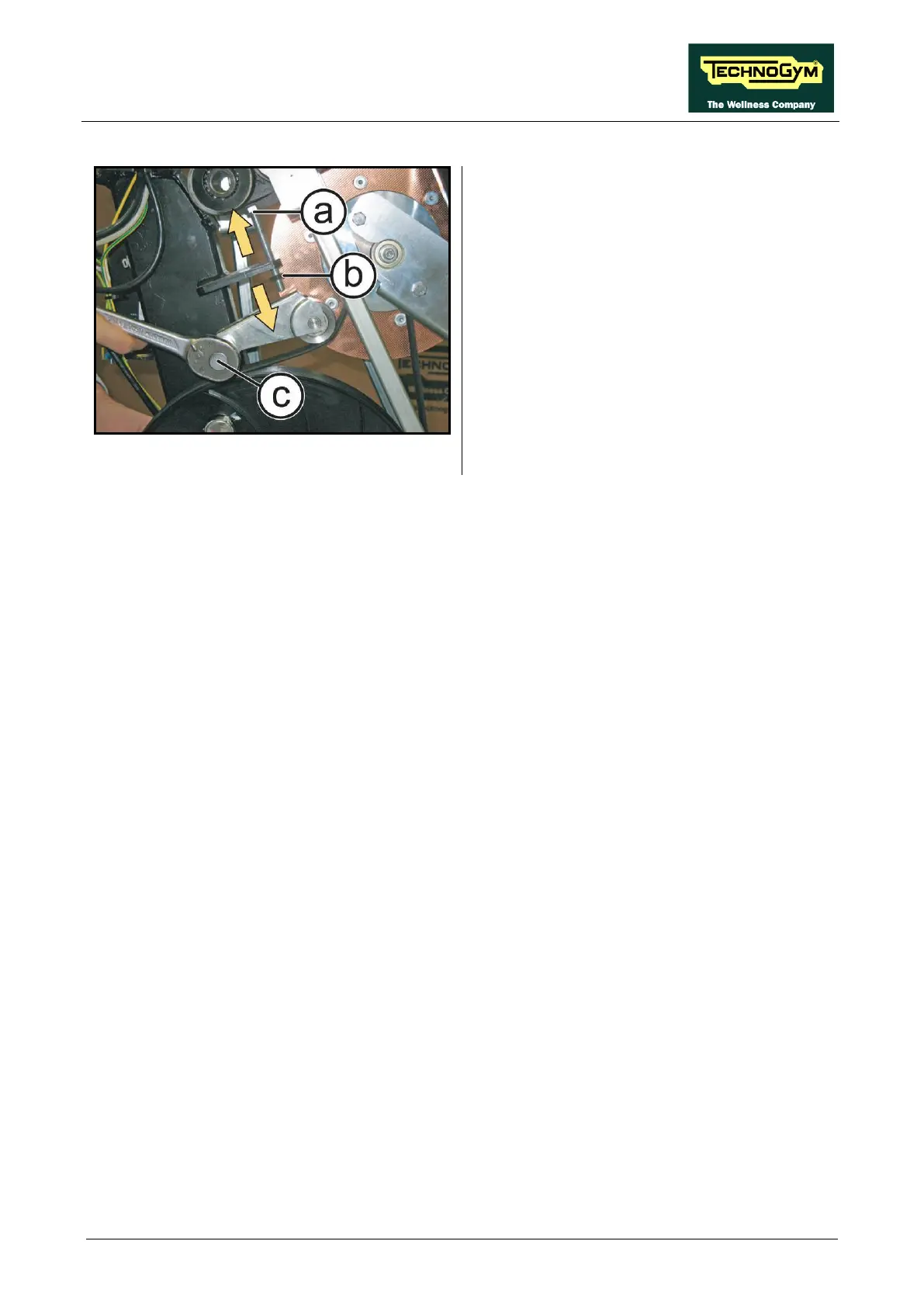

Figure 8.2-3

2. Adjust the tension acting on the screw (a).

3. Lock down the nut (b)

using a17mm wrench

and lock down the screw (c).
