Performance Characteristics

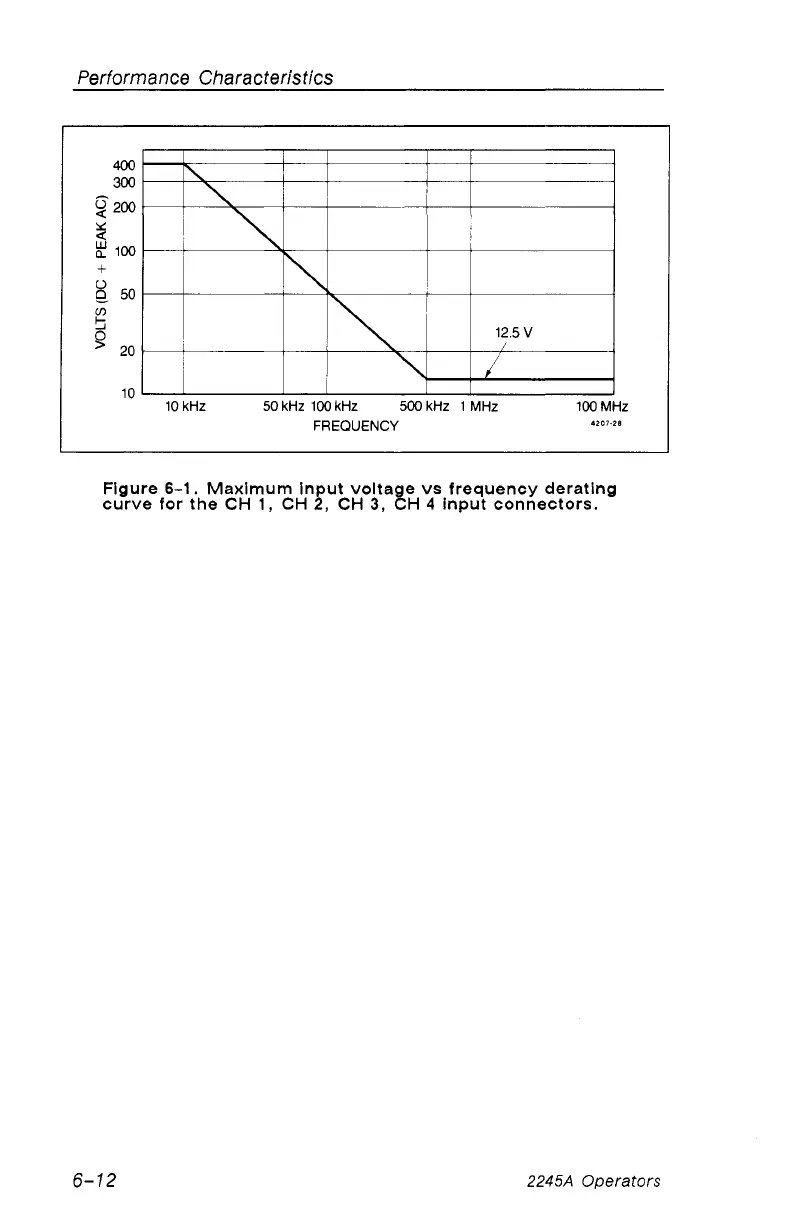

Figure 6-1. Maximum input voltage vs frequency derating
curve for the CH 1, CH 2, CH 3, CH 4 input connectors.
6-12 2245A Operators
