Controls, Connectors, and Indicators

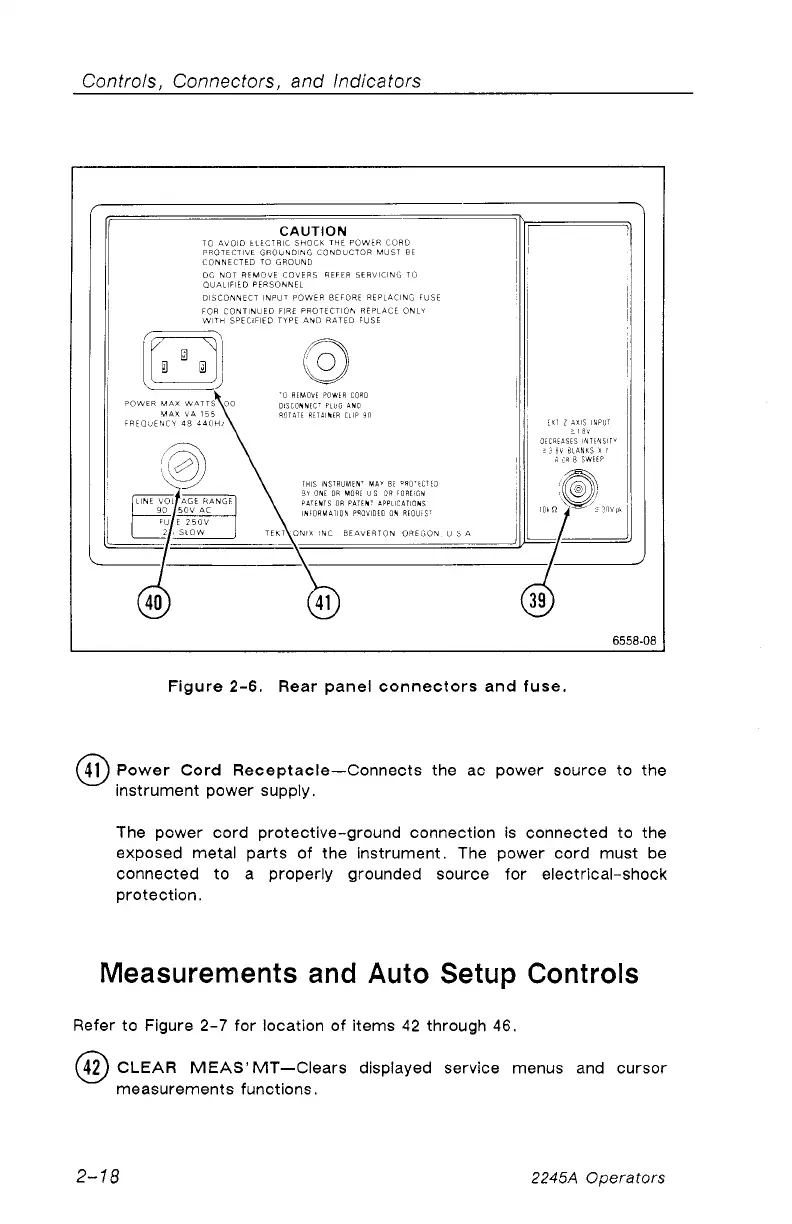

Figure 2-6. Rear panel connectors and fuse.
4J^) Power Cord Receptacle—Connects the ac power source to the
instrument power supply.
The power cord protective-ground connection is connected to the
exposed metal parts of the instrument. The power cord must be
connected to a properly grounded source for electrical-shock
protection.
Measurements and Auto Setup Controls
Refer to Figure 2-7 for location of items 42 through 46.
(42) CLEAR MEAS’MT—Clears displayed service menus and cursor
measurements functions.
2-18
2245A Operators
