Introduction
PRODUCT OVERVIEW
Description
The 2245A is a 100 MHz, four-channel, dual-sweep, portable oscilloscope
for general-purpose use (Figure 1-1), A microprocessor-based operating
system controls most of the functions in the instrument, Including a voltage
and time cursor measurement system and a single-button automatic
front-panel setup feature. A menu -driven service mode provides for con
figuring of single-sweep readout displays, internal calibration, and servicing
diagnostics.
is r - " <: 1 *’
■SSHHffH
A
eae oi

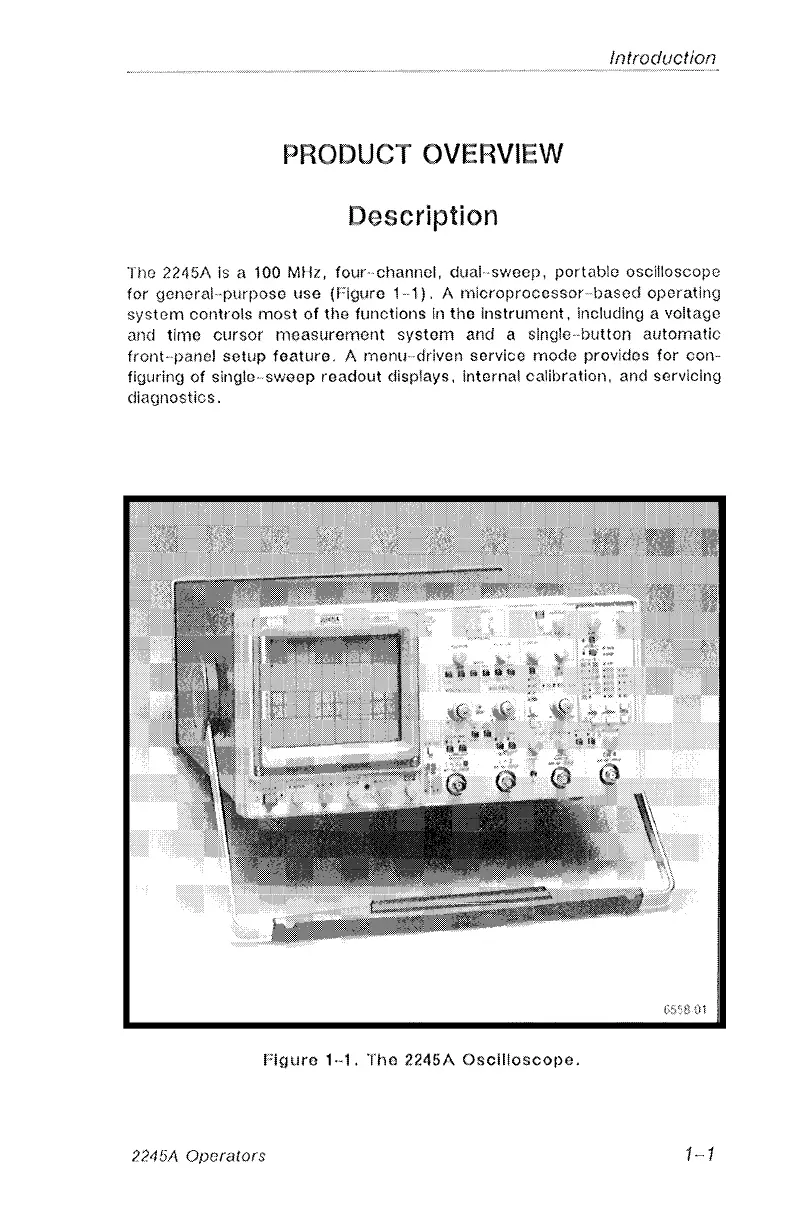

Figure 1-1. The 2245A Oscilloscope.
