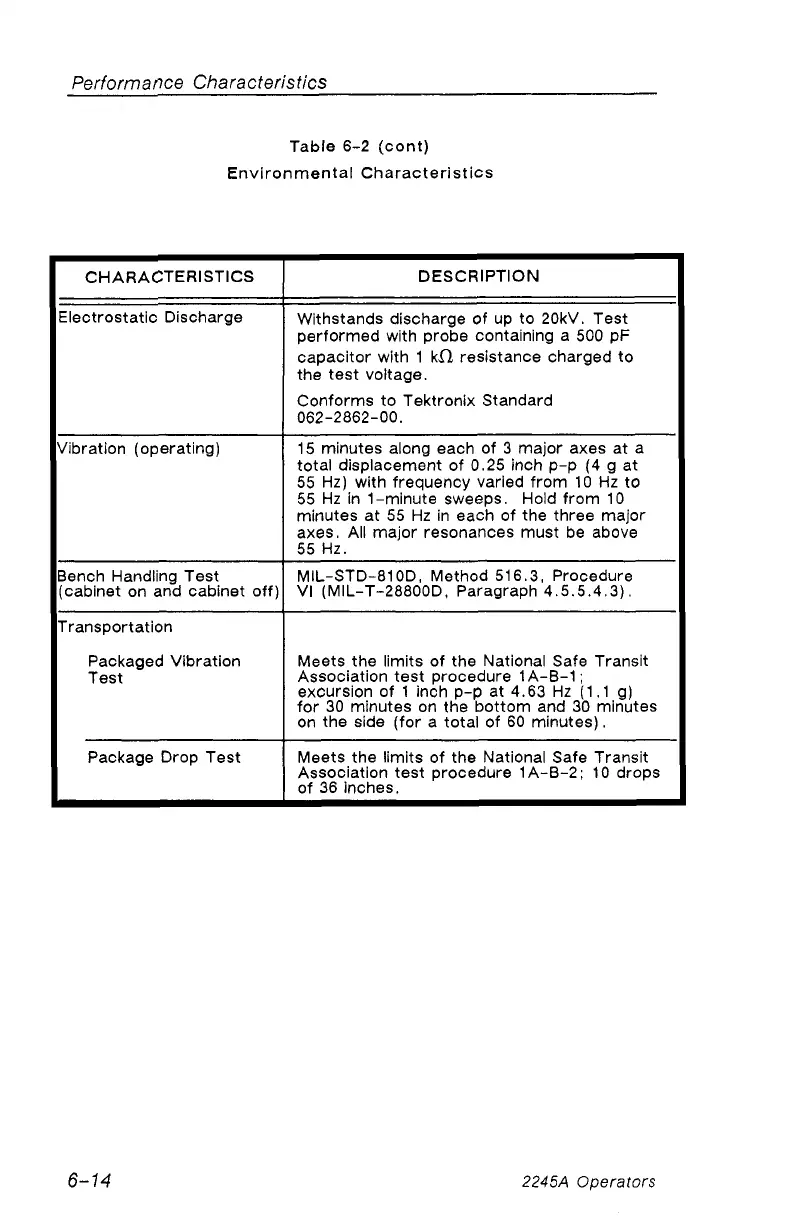

Performance Characteristics
Table 6-2 (cont)
Environmental Characteristics
CHARACTERISTICS
DESCRIPTION
Electrostatic Discharge
Withstands discharge of up to 20kV. Test
performed with probe containing a 500 pF
capacitor with 1 k fl resistance charged to
the test voltage.
Conforms to Tektronix Standard
062-2862-00.
Vibration (operating) 15 minutes along each of 3 major axes at a
total displacement of 0.25 inch p-p (4 g at
55 Hz) with frequency varied from 10 Hz to
55 Hz in 1-minute sweeps. Hold from 10
minutes at 55 Hz in each of the three major
axes. All major resonances must be above
55 Hz.
Bench Handling Test
(cabinet on and cabinet off)
MIL-STD-810D, Method 516.3, Procedure
VI (MIL-T-28800D, Paragraph 4.5.5.4.3).
Transportation
Packaged Vibration
Test
Meets the limits of the National Safe Transit
Association test procedure 1A-B-1;
excursion of 1 inch p-p at 4.63 Hz (1.1 g)
for 30 minutes on the bottom and 30 minutes
on the side (for a total of 60 minutes).
Package Drop Test Meets the limits of the National Safe Transit
Association test procedure 1A-B-2; 10 drops
of 36 inches.
6-14 2245A Operators
