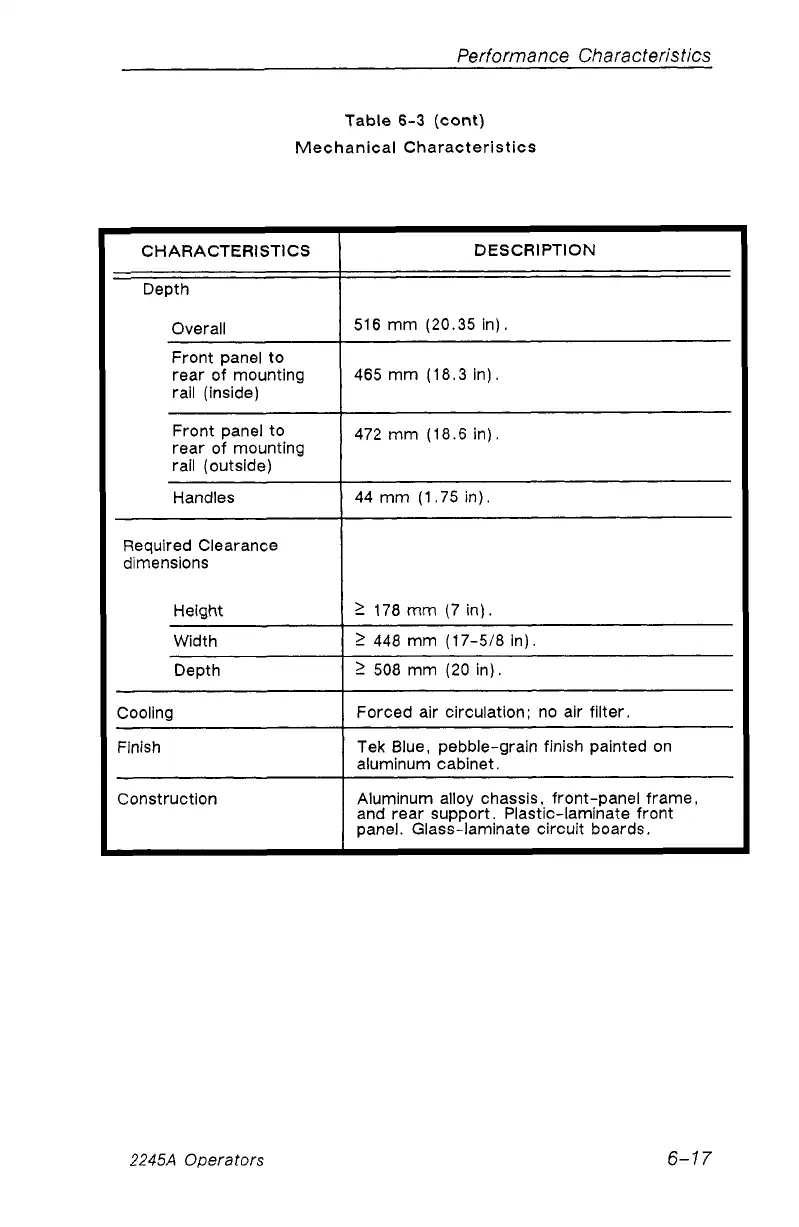

Performance Characteristics
Table 6-3 (cont)
Mechanical Characteristics
CHARACTERISTICS
DESCRIPTION
Depth
Overall
516 mm (20.35 in).
Front panel to
rear of mounting
rail (inside)
465 mm (18.3 in).
Front panel to
rear of mounting
rail (outside)
472 mm (18.6 in).
Handles
44 mm (1.75 in).
Required Clearance
dimensions
Height
> 178 mm (7 in).
Width
> 448 mm (17-5/8 in).
Depth
> 508 mm (20 in).
Cooling
Forced air circulation; no air filter.
Finish
Tek Blue, pebble-grain finish painted on
aluminum cabinet.
Construction
Aluminum alloy chassis, front-panel frame,
and rear support. Plastic-laminate front
panel. Glass-laminate circuit boards.
2245A Operators
6-17
