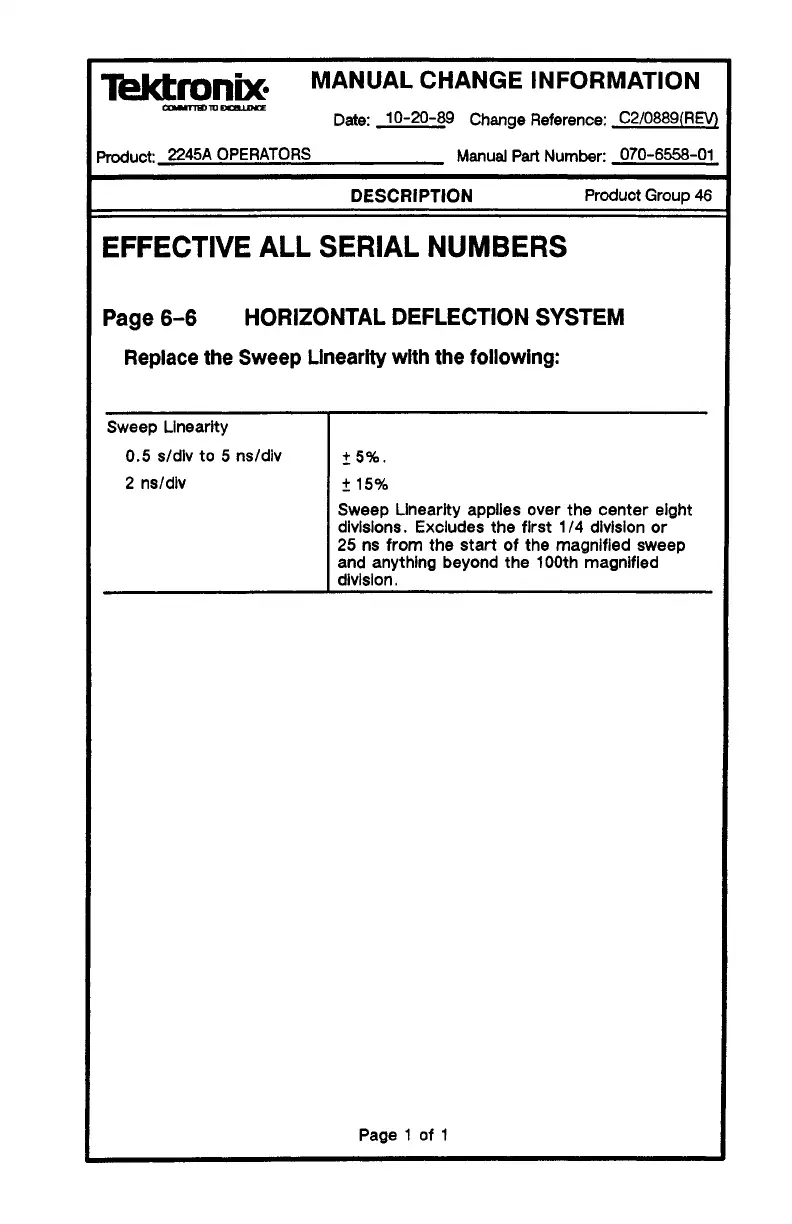

Tektro n ix m a n u a l c h a n g e i n f o r m a t i o n
COMMTTH>TO g**— i »Mrg
Date: 10-20-89 Change Reference: C2/0889(REV)
___________________________ DESCRIPTION____________Product Group 46
EFFECTIVE ALL SERIAL NUMBERS
P a g e 6 - 6 H O R I Z O N T A L D E F L E C T I O N S Y S T E M
Replace the Sweep Linearity with the following:
Product: 2245A OPERATORS _________________ Manual Part Number: 070-6558-01
Sweep Linearity
0.5 s/dlv to 5 ns/dlv
+ 5%.
2 ns/div
+ 15%
Sweep Linearity applies over the center eight
divisions. Excludes the first 1/4 division or
25 ns from the start of the magnified sweep
and anything beyond the 100th magnified
division.
Page 1 of 1
