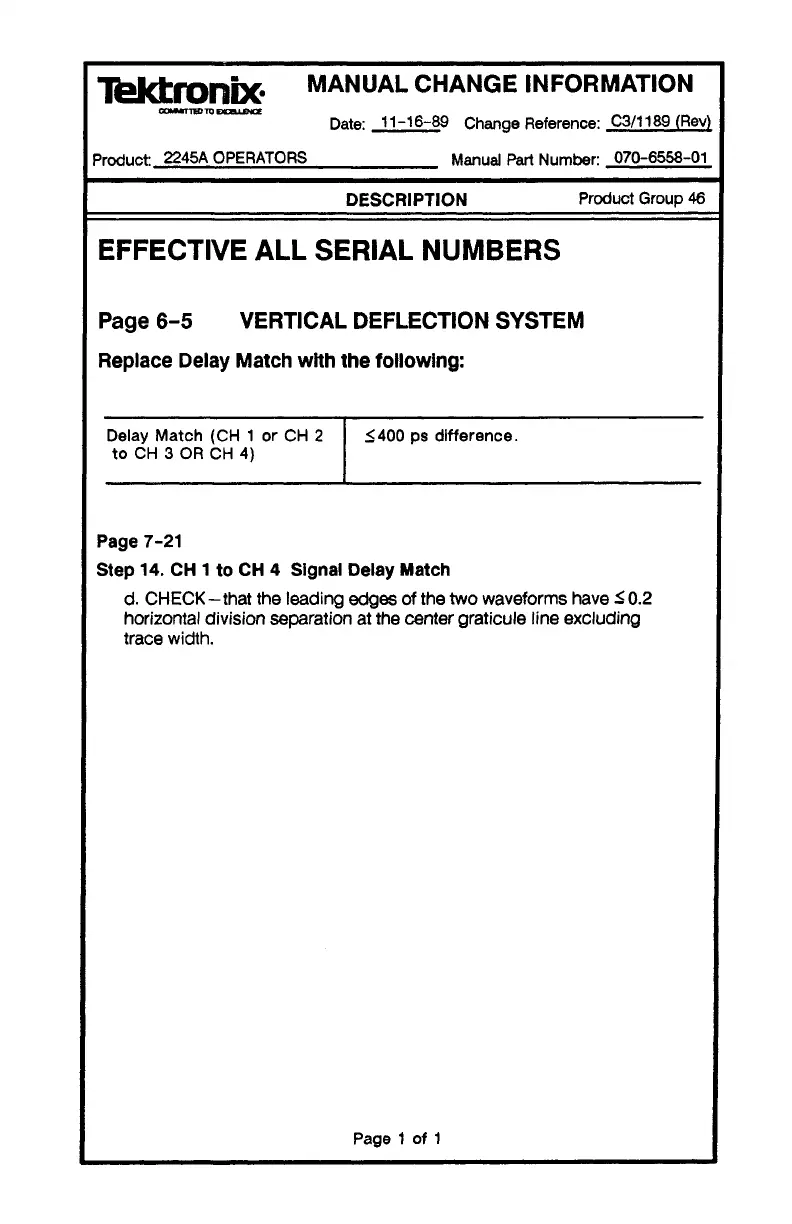

Tektronix 2245A User Manual

Tektronix- m a n u a l c h a n g e i n f o r m a t i o n
COMMT TED TO PCgLLENCg ___
Date: 11-16-89 Change Reference: C3/1189 (Rev)
Product: 2245A OPERATORS_________________ Manual Part Number: 070-6558-01
DESCRIPTION
Product Group 46
EFFECTIVE ALL SERIAL NUMBERS
P a g e 6 - 5 V E R T I C A L D E F L E C T I O N S Y S T E M
Replace Delay Match with the following:
Delay Match (CH 1 or CH 2 <400 ps difference.
to CH 3 OR CH 4)
Page 7-21
Step 14. CH 1 to CH 4 Signal Delay Match
d. CHECK - that the leading edges of the two waveforms have ^ 0.2
horizontal division separation at the center graticule line excluding
trace width.
Page 1 of 1
