Tektronix 2245A User Manual

Introduction
WARNING
For electrical-shock protection, insert this plug into a power-
source outlet that has a properly grounded protective-ground
contact.
Plug
Configuration Usage
Line
Voltage
Reference
Standards
Option
Number
North
American
1 2 0 V /
15A
120V
ANSI C73.11
NE MA 5 -15-P
IEC 83
Standard
Universal
Euro
2 4 0 V /
10-16A
240V
CEE (7 ),II,IV,VII
IEC 83
A1
UK
2 4 0 V /
13A
240V
BS 1363
IEC 83
A2
Australian
2 4 0 V /
10A
240V AS C 112 A3
North
American
2 4 0 V /
15A
240V
ANSI C 73.20
NE MA 6 -15-P
IEC 83
A4
Switzerland
2 2 0 V /
6A
220V SEV
A5
Abbreviations:
ANSI — American National Standards Institute
AS — Standards Association of Australia
BS — British Standards Institution
CEE — International Commission on Rules for the
Approval of Electrical Equipment
IEC — International Electrotechnical Commission
NE MA — National Electrical Manufacturer's Association
SEV — Schweizevischer Elektrotechischer Verein
. (2931-21)6558-02

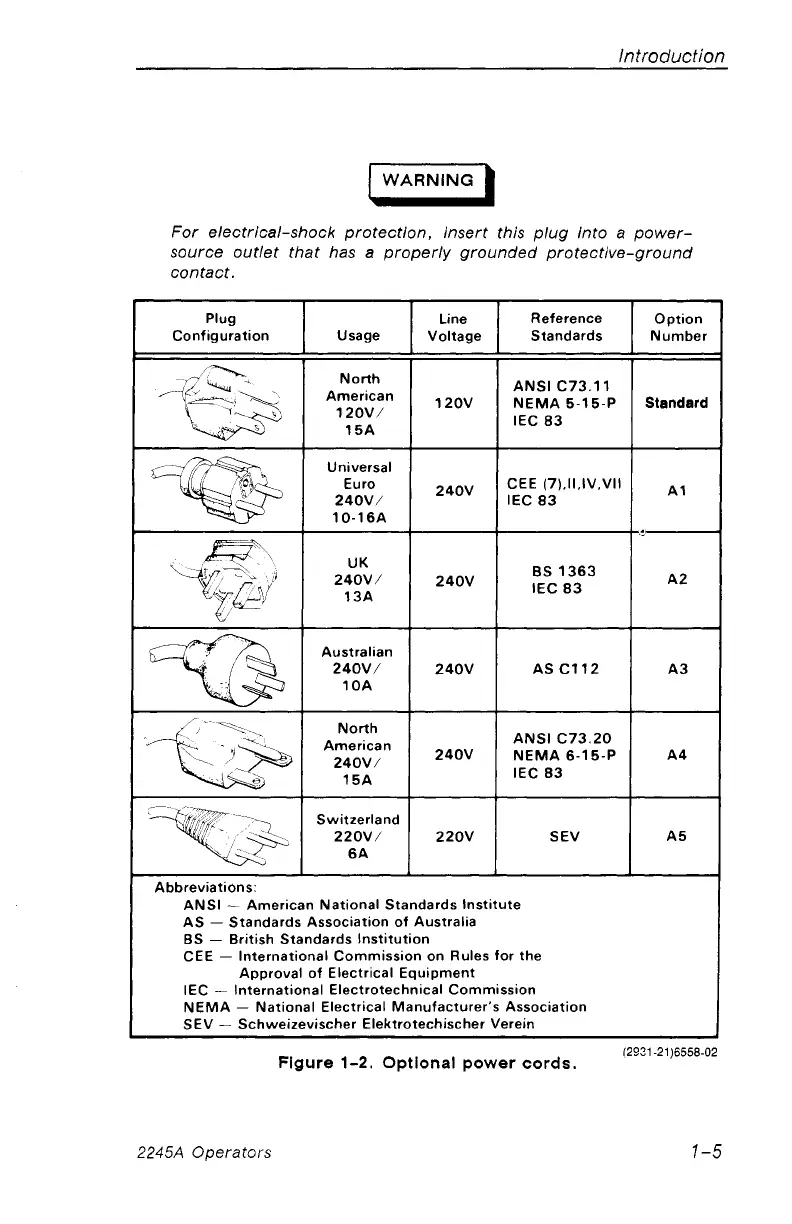

Figure 1-2. Optional power cords.
2245A Operators
1-5
